IndexMap Class Reference

#include <IndexMap.h>

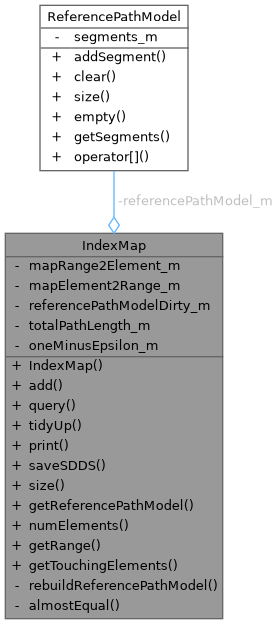

Collaboration diagram for IndexMap:

Classes
class	myCompare
class	OutOfBounds
struct	Range

Public Types
typedef Range	key_t
typedef std::set< std::shared_ptr< Component > >	value_t

Public Member Functions
	IndexMap ()
void	add (key_t::first_type initialStep, key_t::second_type finalStep, const value_t &val)
value_t	query (key_t::first_type s, key_t::second_type ds)
void	tidyUp (double zstop)
void	print (std::ostream &) const
void	saveSDDS (double startS) const
size_t	size () const
const ReferencePathModel &	getReferencePathModel () const
size_t	numElements () const
key_t	getRange (const IndexMap::value_t::value_type &element, double position) const
value_t	getTouchingElements (const key_t &range) const

Private Types
typedef std::map< key_t, value_t, myCompare >	map_t
typedef std::multimap< value_t::value_type, key_t >	invertedMap_t

Private Member Functions
void	rebuildReferencePathModel () const

Static Private Member Functions
static bool	almostEqual (double, double)

Private Attributes
map_t	mapRange2Element_m
invertedMap_t	mapElement2Range_m
ReferencePathModel	referencePathModel_m
bool	referencePathModelDirty_m
double	totalPathLength_m

Static Private Attributes
static const double	oneMinusEpsilon_m = 1.0 - std::numeric_limits<double>::epsilon()

Detailed Description

Definition at line 37 of file IndexMap.h.

---

Class Documentation

IndexMap::Range

struct IndexMap::Range

Definition at line 39 of file IndexMap.h.

Collaboration diagram for IndexMap::Range:

Class Members
typedef double	first_type
typedef double	second_type

Class Members
first_type	begin
second_type	end

Member Typedef Documentation

invertedMap_t

typedef std::multimap<value_t::value_type, key_t> IndexMap::invertedMap_t

private

Definition at line 92 of file IndexMap.h.

key_t

typedef Range IndexMap::key_t

Definition at line 45 of file IndexMap.h.

map_t

typedef std::map<key_t, value_t, myCompare> IndexMap::map_t

private

Definition at line 91 of file IndexMap.h.

value_t

typedef std::set<std::shared_ptr<Component> > IndexMap::value_t

Definition at line 46 of file IndexMap.h.

Constructor & Destructor Documentation

IndexMap()

IndexMap::IndexMap

(

)

Definition at line 43 of file IndexMap.cpp.

Member Function Documentation

add()

void IndexMap::add	(	key_t::first_type	initialStep,
		key_t::second_type	finalStep,
		const value_t &	val
	)

Definition at line 111 of file IndexMap.cpp.

References almostEqual(), IndexMap::Range::end, mapElement2Range_m, mapRange2Element_m, oneMinusEpsilon_m, referencePathModelDirty_m, and totalPathLength_m.

Referenced by OrbitThreader::execute(), TEST(), and TEST_F().

Here is the call graph for this function:

almostEqual()

bool IndexMap::almostEqual ( double  x, double  y  )

staticprivate

Definition at line 389 of file IndexMap.cpp.

Referenced by add(), and getTouchingElements().

getRange()

IndexMap::key_t IndexMap::getRange	(	const IndexMap::value_t::value_type &	element,
		double	position
	)		const

Definition at line 354 of file IndexMap.cpp.

References mapElement2Range_m.

Referenced by OrbitThreader::getRange().

getReferencePathModel()

const ReferencePathModel & IndexMap::getReferencePathModel ( ) const

inline

Definition at line 107 of file IndexMap.h.

References rebuildReferencePathModel(), referencePathModel_m, and referencePathModelDirty_m.

Referenced by OrbitThreader::getReferencePathModel(), saveSDDS(), and TEST().

Here is the call graph for this function:

getTouchingElements()

IndexMap::value_t IndexMap::getTouchingElements

(

const key_t &

range

)

const

Definition at line 376 of file IndexMap.cpp.

References almostEqual(), IndexMap::Range::begin, IndexMap::Range::end, and mapRange2Element_m.

Referenced by OrbitThreader::getTouchingElements().

Here is the call graph for this function:

numElements()

size_t IndexMap::numElements

(

)

const

print()

void IndexMap::print

(

std::ostream &

out

)

const

Definition at line 50 of file IndexMap.cpp.

References IndexMap::Range::begin, IndexMap::Range::end, and mapRange2Element_m.

query()

IndexMap::value_t IndexMap::query	(	key_t::first_type	s,
		key_t::second_type	ds
	)

Definition at line 74 of file IndexMap.cpp.

References mapRange2Element_m, and totalPathLength_m.

Referenced by OrbitThreader::query().

rebuildReferencePathModel()

void IndexMap::rebuildReferencePathModel ( ) const

private

Definition at line 160 of file IndexMap.cpp.

References ReferencePathModel::addSegment(), ReferencePathModel::clear(), mapRange2Element_m, referencePathModel_m, and referencePathModelDirty_m.

Referenced by getReferencePathModel().

Here is the call graph for this function:

saveSDDS()

void IndexMap::saveSDDS

(

double

startS

)

const

Definition at line 182 of file IndexMap.cpp.

References Util::combineFilePath(), OpalData::getAuxiliaryOutputDirectory(), OpalData::getInputBasename(), OpalData::getInstance(), getReferencePathModel(), ReferencePathModel::getSegments(), mapElement2Range_m, mapRange2Element_m, RFCAVITY, SIZE, and TRAVELINGWAVE.

Referenced by OrbitThreader::execute(), and TEST_F().

Here is the call graph for this function:

size()

size_t IndexMap::size ( ) const

inline

Definition at line 105 of file IndexMap.h.

References mapRange2Element_m.

tidyUp()

void IndexMap::tidyUp

(

double

zstop

)

Definition at line 147 of file IndexMap.cpp.

References IndexMap::Range::begin, mapRange2Element_m, and referencePathModelDirty_m.

Referenced by OrbitThreader::execute().

Member Data Documentation

mapElement2Range_m

invertedMap_t IndexMap::mapElement2Range_m

private

Definition at line 94 of file IndexMap.h.

Referenced by add(), getRange(), and saveSDDS().

mapRange2Element_m

map_t IndexMap::mapRange2Element_m

private

Definition at line 93 of file IndexMap.h.

Referenced by add(), getTouchingElements(), print(), query(), rebuildReferencePathModel(), saveSDDS(), size(), and tidyUp().

oneMinusEpsilon_m

const double IndexMap::oneMinusEpsilon_m = 1.0 - std::numeric_limits<double>::epsilon()

staticprivate

Definition at line 102 of file IndexMap.h.

Referenced by add().

referencePathModel_m

ReferencePathModel IndexMap::referencePathModel_m

mutableprivate

Definition at line 95 of file IndexMap.h.

Referenced by getReferencePathModel(), and rebuildReferencePathModel().

referencePathModelDirty_m

bool IndexMap::referencePathModelDirty_m

mutableprivate

Definition at line 96 of file IndexMap.h.

Referenced by add(), getReferencePathModel(), rebuildReferencePathModel(), and tidyUp().

totalPathLength_m

double IndexMap::totalPathLength_m

private

Definition at line 98 of file IndexMap.h.

Referenced by add(), and query().

---

The documentation for this class was generated from the following files:

• IndexMap.h
• IndexMap.cpp
