#include <algorithm>
#include <cmath>
#include <complex>
#include <vector>

Include dependency graph for GSLFFT.h:

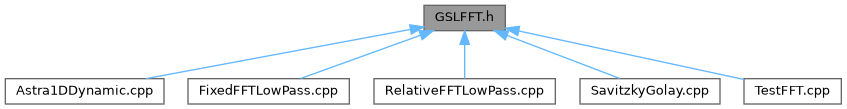

This graph shows which files directly or indirectly include this file:

Classes
struct	gsl_fft_real_wavetable
	GSL-compatible interface for FFT routines. More...

struct	gsl_fft_real_workspace
	Workspace for real FFT routines. More...

struct	gsl_fft_halfcomplex_wavetable
	Halfcomplex FFT types for inverse transforms. More...

struct	gsl_fft_halfcomplex_workspace
	Workspace for halfcomplex FFT routines. More...

struct	gsl_fft_complex_wavetable
	Complex FFT types. More...

struct	gsl_fft_complex_workspace
	Workspace for complex FFT routines. More...

Namespaces
namespace	FFT
	Simple FFT implementation using Cooley-Tukey algorithm.

Functions
void	FFT::fft_real_transform (double *data, size_t stride, size_t n)
	Forward FFT for real data (packed output).

gsl_fft_real_wavetable *	gsl_fft_real_wavetable_alloc (size_t n)
	Allocate a real FFT wavetable of size \(n\).

gsl_fft_real_workspace *	gsl_fft_real_workspace_alloc (size_t n)
	Allocate a real FFT workspace of size \(n\).

void	gsl_fft_real_transform (double data, size_t stride, size_t n, gsl_fft_real_wavetable , gsl_fft_real_workspace *)
	Forward real FFT with GSL-compatible packed output.

void	gsl_fft_real_wavetable_free (gsl_fft_real_wavetable *w)
	Free a real FFT wavetable.

void	gsl_fft_real_workspace_free (gsl_fft_real_workspace *w)
	Free a real FFT workspace.

gsl_fft_halfcomplex_wavetable *	gsl_fft_halfcomplex_wavetable_alloc (size_t n)
	Allocate a halfcomplex FFT wavetable of size \(n\).

gsl_fft_halfcomplex_workspace *	gsl_fft_halfcomplex_workspace_alloc (size_t n)
	Allocate a halfcomplex FFT workspace of size \(n\).

void	gsl_fft_halfcomplex_transform (double data, size_t stride, size_t n, gsl_fft_halfcomplex_wavetable , gsl_fft_halfcomplex_workspace *)
	Inverse transform from halfcomplex packed data.

void	gsl_fft_halfcomplex_wavetable_free (gsl_fft_halfcomplex_wavetable *w)
	Free a halfcomplex FFT wavetable.

void	gsl_fft_halfcomplex_workspace_free (gsl_fft_halfcomplex_workspace *w)
	Free a halfcomplex FFT workspace.

void	gsl_fft_halfcomplex_inverse (double data, size_t stride, size_t n, gsl_fft_halfcomplex_wavetable wavetable, gsl_fft_halfcomplex_workspace *workspace)
	Alias for halfcomplex inverse transform.

void	gsl_fft_halfcomplex_inverse (double data, size_t stride, size_t n, gsl_fft_halfcomplex_wavetable , gsl_fft_real_workspace *)
	Allow real workspace to be used with halfcomplex (compat helper).

gsl_fft_complex_wavetable *	gsl_fft_complex_wavetable_alloc (size_t n)
	Allocate a complex FFT wavetable of size \(n\).

gsl_fft_complex_workspace *	gsl_fft_complex_workspace_alloc (size_t n)
	Allocate a complex FFT workspace of size \(n\).

void	gsl_fft_complex_forward (double data, size_t stride, size_t n, gsl_fft_complex_wavetable , gsl_fft_complex_workspace *)
	Forward complex FFT.

void	gsl_fft_complex_inverse (double data, size_t stride, size_t n, gsl_fft_complex_wavetable , gsl_fft_complex_workspace *)
	Inverse complex FFT (GSL scaling: multiplies by \(n\)).

void	gsl_fft_complex_wavetable_free (gsl_fft_complex_wavetable *w)
	Free a complex FFT wavetable.

void	gsl_fft_complex_workspace_free (gsl_fft_complex_workspace *w)
	Free a complex FFT workspace.

void	gsl_fft_complex_radix2_forward (double *data, size_t stride, size_t n)
	Radix-2 forward complex FFT (allocates temporary wavetable/workspace).

void	gsl_fft_complex_radix2_inverse (double *data, size_t stride, size_t n)
	Radix-2 inverse complex FFT (GSL scaling, allocates temporaries).

Class Documentation

◆ gsl_fft_real_wavetable

struct gsl_fft_real_wavetable

GSL-compatible interface for FFT routines.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 115 of file GSLFFT.h.

Collaboration diagram for gsl_fft_real_wavetable:

Class Members
size_t	n

◆ gsl_fft_real_workspace

struct gsl_fft_real_workspace

Workspace for real FFT routines.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 121 of file GSLFFT.h.

Collaboration diagram for gsl_fft_real_workspace:

Class Members
size_t	n
vector< double >	work

◆ gsl_fft_halfcomplex_wavetable

struct gsl_fft_halfcomplex_wavetable

Halfcomplex FFT types for inverse transforms.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 167 of file GSLFFT.h.

Collaboration diagram for gsl_fft_halfcomplex_wavetable:

Class Members
size_t	n

◆ gsl_fft_halfcomplex_workspace

struct gsl_fft_halfcomplex_workspace

Workspace for halfcomplex FFT routines.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 173 of file GSLFFT.h.

Collaboration diagram for gsl_fft_halfcomplex_workspace:

Class Members
size_t	n
vector< double >	work

◆ gsl_fft_complex_wavetable

struct gsl_fft_complex_wavetable

Complex FFT types.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 269 of file GSLFFT.h.

Collaboration diagram for gsl_fft_complex_wavetable:

Class Members
size_t	n

◆ gsl_fft_complex_workspace

struct gsl_fft_complex_workspace

Workspace for complex FFT routines.

See also: https://www.gnu.org/software/gsl/doc/html/fft.html

Definition at line 275 of file GSLFFT.h.

Collaboration diagram for gsl_fft_complex_workspace:

Class Members
size_t	n
vector< complex< double > >	work

Function Documentation

◆ gsl_fft_complex_forward()

void gsl_fft_complex_forward	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_complex_wavetable *	,
		gsl_fft_complex_workspace *
	)

inline

Forward complex FFT.

Input/output layout is interleaved: \([Re_0, Im_0, Re_1, Im_1, ...]\).

Parameters

data	Input/Output: interleaved complex data overwritten with spectrum.
stride	Input: complex element stride.
n	Input: number of complex samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 306 of file GSLFFT.h.

Referenced by gsl_fft_complex_radix2_forward(), TEST_F(), and TEST_F().

◆ gsl_fft_complex_inverse()

void gsl_fft_complex_inverse	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_complex_wavetable *	,
		gsl_fft_complex_workspace *
	)

inline

Inverse complex FFT (GSL scaling: multiplies by \(n\)).

Input/output layout is interleaved: \([Re_0, Im_0, Re_1, Im_1, ...]\).

Parameters

data	Input/Output: interleaved complex spectrum overwritten with signal.
stride	Input: complex element stride.
n	Input: number of complex samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 327 of file GSLFFT.h.

Referenced by gsl_fft_complex_radix2_inverse(), TEST_F(), and TEST_F().

◆ gsl_fft_complex_radix2_forward()

void gsl_fft_complex_radix2_forward	(	double *	data,
		size_t	stride,
		size_t	n
	)

inline

Radix-2 forward complex FFT (allocates temporary wavetable/workspace).

Parameters

data	Input/Output: interleaved complex data overwritten with spectrum.
stride	Input: complex element stride.
n	Input: number of complex samples.

Definition at line 356 of file GSLFFT.h.

References gsl_fft_complex_forward(), gsl_fft_complex_wavetable_alloc(), gsl_fft_complex_wavetable_free(), gsl_fft_complex_workspace_alloc(), and gsl_fft_complex_workspace_free().

Referenced by TEST_F().

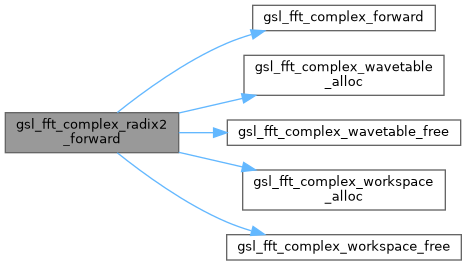

Here is the call graph for this function:

◆ gsl_fft_complex_radix2_inverse()

void gsl_fft_complex_radix2_inverse	(	double *	data,
		size_t	stride,
		size_t	n
	)

inline

Radix-2 inverse complex FFT (GSL scaling, allocates temporaries).

Parameters

data	Input/Output: interleaved complex spectrum overwritten with signal.
stride	Input: complex element stride.
n	Input: number of complex samples.

Definition at line 368 of file GSLFFT.h.

References gsl_fft_complex_inverse(), gsl_fft_complex_wavetable_alloc(), gsl_fft_complex_wavetable_free(), gsl_fft_complex_workspace_alloc(), and gsl_fft_complex_workspace_free().

Referenced by TEST_F().

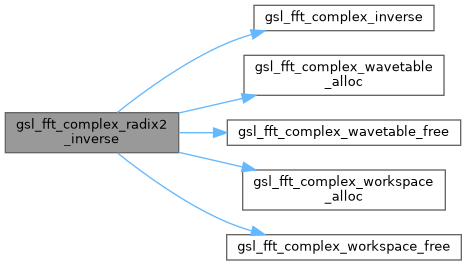

Here is the call graph for this function:

◆ gsl_fft_complex_wavetable_alloc()

gsl_fft_complex_wavetable * gsl_fft_complex_wavetable_alloc ( size_t n )

inline

Allocate a complex FFT wavetable of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: wavetable pointer.

Definition at line 283 of file GSLFFT.h.

References gsl_fft_complex_wavetable::n.

Referenced by gsl_fft_complex_radix2_forward(), gsl_fft_complex_radix2_inverse(), TEST_F(), TEST_F(), and TEST_F().

◆ gsl_fft_complex_wavetable_free()

void gsl_fft_complex_wavetable_free ( gsl_fft_complex_wavetable * w )

inline

Free a complex FFT wavetable.

Parameters

w	Input: wavetable to release (can be null).

Definition at line 346 of file GSLFFT.h.

Referenced by gsl_fft_complex_radix2_forward(), gsl_fft_complex_radix2_inverse(), TEST_F(), TEST_F(), and TEST_F().

◆ gsl_fft_complex_workspace_alloc()

gsl_fft_complex_workspace * gsl_fft_complex_workspace_alloc ( size_t n )

inline

Allocate a complex FFT workspace of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: workspace pointer.

Definition at line 292 of file GSLFFT.h.

References gsl_fft_complex_workspace::n, and gsl_fft_complex_workspace::work.

Referenced by gsl_fft_complex_radix2_forward(), gsl_fft_complex_radix2_inverse(), TEST_F(), TEST_F(), and TEST_F().

◆ gsl_fft_complex_workspace_free()

void gsl_fft_complex_workspace_free ( gsl_fft_complex_workspace * w )

inline

Free a complex FFT workspace.

Parameters

w	Input: workspace to release (can be null).

Definition at line 350 of file GSLFFT.h.

Referenced by gsl_fft_complex_radix2_forward(), gsl_fft_complex_radix2_inverse(), TEST_F(), TEST_F(), and TEST_F().

◆ gsl_fft_halfcomplex_inverse() [1/2]

void gsl_fft_halfcomplex_inverse	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_halfcomplex_wavetable *	,
		gsl_fft_real_workspace *
	)

inline

Allow real workspace to be used with halfcomplex (compat helper).

Parameters

data	Input/Output: packed spectrum overwritten with real sequence.
stride	Input: element stride in `data`.
n	Input: number of samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 257 of file GSLFFT.h.

References gsl_fft_halfcomplex_transform(), gsl_fft_halfcomplex_wavetable_alloc(), gsl_fft_halfcomplex_wavetable_free(), gsl_fft_halfcomplex_workspace_alloc(), and gsl_fft_halfcomplex_workspace_free().

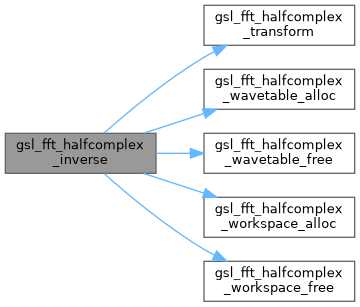

Here is the call graph for this function:

◆ gsl_fft_halfcomplex_inverse() [2/2]

void gsl_fft_halfcomplex_inverse	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_halfcomplex_wavetable *	wavetable,
		gsl_fft_halfcomplex_workspace *	workspace
	)

inline

Alias for halfcomplex inverse transform.

Parameters

data	Input/Output: packed spectrum overwritten with real sequence.
stride	Input: element stride in `data`.
n	Input: number of samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 245 of file GSLFFT.h.

References gsl_fft_halfcomplex_transform().

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), and convlv().

Here is the call graph for this function:

◆ gsl_fft_halfcomplex_transform()

void gsl_fft_halfcomplex_transform	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_halfcomplex_wavetable *	,
		gsl_fft_halfcomplex_workspace *
	)

inline

Inverse transform from halfcomplex packed data.

Parameters

data	Input/Output: packed spectrum overwritten with real sequence.
stride	Input: element stride in `data`.
n	Input: number of samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 203 of file GSLFFT.h.

Referenced by gsl_fft_halfcomplex_inverse(), and gsl_fft_halfcomplex_inverse().

◆ gsl_fft_halfcomplex_wavetable_alloc()

gsl_fft_halfcomplex_wavetable * gsl_fft_halfcomplex_wavetable_alloc ( size_t n )

inline

Allocate a halfcomplex FFT wavetable of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: wavetable pointer.

Definition at line 181 of file GSLFFT.h.

References gsl_fft_halfcomplex_wavetable::n.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and gsl_fft_halfcomplex_inverse().

◆ gsl_fft_halfcomplex_wavetable_free()

void gsl_fft_halfcomplex_wavetable_free ( gsl_fft_halfcomplex_wavetable * w )

inline

Free a halfcomplex FFT wavetable.

Parameters

w	Input: wavetable to release (can be null).

Definition at line 233 of file GSLFFT.h.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and gsl_fft_halfcomplex_inverse().

◆ gsl_fft_halfcomplex_workspace_alloc()

gsl_fft_halfcomplex_workspace * gsl_fft_halfcomplex_workspace_alloc ( size_t n )

inline

Allocate a halfcomplex FFT workspace of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: workspace pointer.

Definition at line 190 of file GSLFFT.h.

References gsl_fft_halfcomplex_workspace::n, and gsl_fft_halfcomplex_workspace::work.

Referenced by gsl_fft_halfcomplex_inverse().

◆ gsl_fft_halfcomplex_workspace_free()

void gsl_fft_halfcomplex_workspace_free ( gsl_fft_halfcomplex_workspace * w )

inline

Free a halfcomplex FFT workspace.

Parameters

w	Input: workspace to release (can be null).

Definition at line 237 of file GSLFFT.h.

Referenced by gsl_fft_halfcomplex_inverse().

◆ gsl_fft_real_transform()

void gsl_fft_real_transform	(	double *	data,
		size_t	stride,
		size_t	n,
		gsl_fft_real_wavetable *	,
		gsl_fft_real_workspace *
	)

inline

Forward real FFT with GSL-compatible packed output.

Parameters

data	Input/Output: real input sequence overwritten with packed spectrum.
stride	Input: element stride in `data`.
n	Input: number of samples.
wavetable	Input: wavetable (unused).
workspace	Input: workspace (unused).

Definition at line 151 of file GSLFFT.h.

References FFT::fft_real_transform().

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and TEST_F().

Here is the call graph for this function:

◆ gsl_fft_real_wavetable_alloc()

gsl_fft_real_wavetable * gsl_fft_real_wavetable_alloc ( size_t n )

inline

Allocate a real FFT wavetable of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: wavetable pointer.

Definition at line 129 of file GSLFFT.h.

References gsl_fft_real_wavetable::n.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and TEST_F().

◆ gsl_fft_real_wavetable_free()

void gsl_fft_real_wavetable_free ( gsl_fft_real_wavetable * w )

inline

Free a real FFT wavetable.

Parameters

w	Input: wavetable to release (can be null).

Definition at line 159 of file GSLFFT.h.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and TEST_F().

◆ gsl_fft_real_workspace_alloc()

gsl_fft_real_workspace * gsl_fft_real_workspace_alloc ( size_t n )

inline

Allocate a real FFT workspace of size \(n\).

Parameters

n	Input: transform size.

Returns: Output: workspace pointer.

Definition at line 138 of file GSLFFT.h.

References gsl_fft_real_workspace::n, and gsl_fft_real_workspace::work.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and TEST_F().

◆ gsl_fft_real_workspace_free()

void gsl_fft_real_workspace_free ( gsl_fft_real_workspace * w )

inline

Free a real FFT workspace.

Parameters

w	Input: workspace to release (can be null).

Definition at line 163 of file GSLFFT.h.

Referenced by FixedFFTLowPassFilter::apply(), RelativeFFTLowPassFilter::apply(), FixedFFTLowPassFilter::calc_derivative(), RelativeFFTLowPassFilter::calc_derivative(), convlv(), and TEST_F().

Classes

Namespaces

Functions

Class Documentation

◆ gsl_fft_real_wavetable

◆ gsl_fft_real_workspace

◆ gsl_fft_halfcomplex_wavetable

◆ gsl_fft_halfcomplex_workspace

◆ gsl_fft_complex_wavetable

◆ gsl_fft_complex_workspace

Function Documentation

◆ gsl_fft_complex_forward()

◆ gsl_fft_complex_inverse()

◆ gsl_fft_complex_radix2_forward()

◆ gsl_fft_complex_radix2_inverse()

◆ gsl_fft_complex_wavetable_alloc()

◆ gsl_fft_complex_wavetable_free()

◆ gsl_fft_complex_workspace_alloc()

◆ gsl_fft_complex_workspace_free()

◆ gsl_fft_halfcomplex_inverse() [1/2]

◆ gsl_fft_halfcomplex_inverse() [2/2]

◆ gsl_fft_halfcomplex_transform()

◆ gsl_fft_halfcomplex_wavetable_alloc()

◆ gsl_fft_halfcomplex_wavetable_free()

◆ gsl_fft_halfcomplex_workspace_alloc()

◆ gsl_fft_halfcomplex_workspace_free()

◆ gsl_fft_real_transform()

◆ gsl_fft_real_wavetable_alloc()

◆ gsl_fft_real_wavetable_free()

◆ gsl_fft_real_workspace_alloc()

◆ gsl_fft_real_workspace_free()
