1. Scope

This note documents the current OPALX validation path for linear inverse Compton scattering in the weak-field regime. The immediate goal is not yet a full tracking implementation, but a CAIN-validated benchmark path for the process

\[e^- + \gamma_L \rightarrow e^- + \gamma .\]

The benchmark follows the same staged strategy as the Breit-Wheeler note:

  • start from a fixed-geometry, unpolarized, linear process,

  • validate deterministic and sampled spectra against CAIN,

  • then extend to broader beam models without enabling tracked interaction yet.

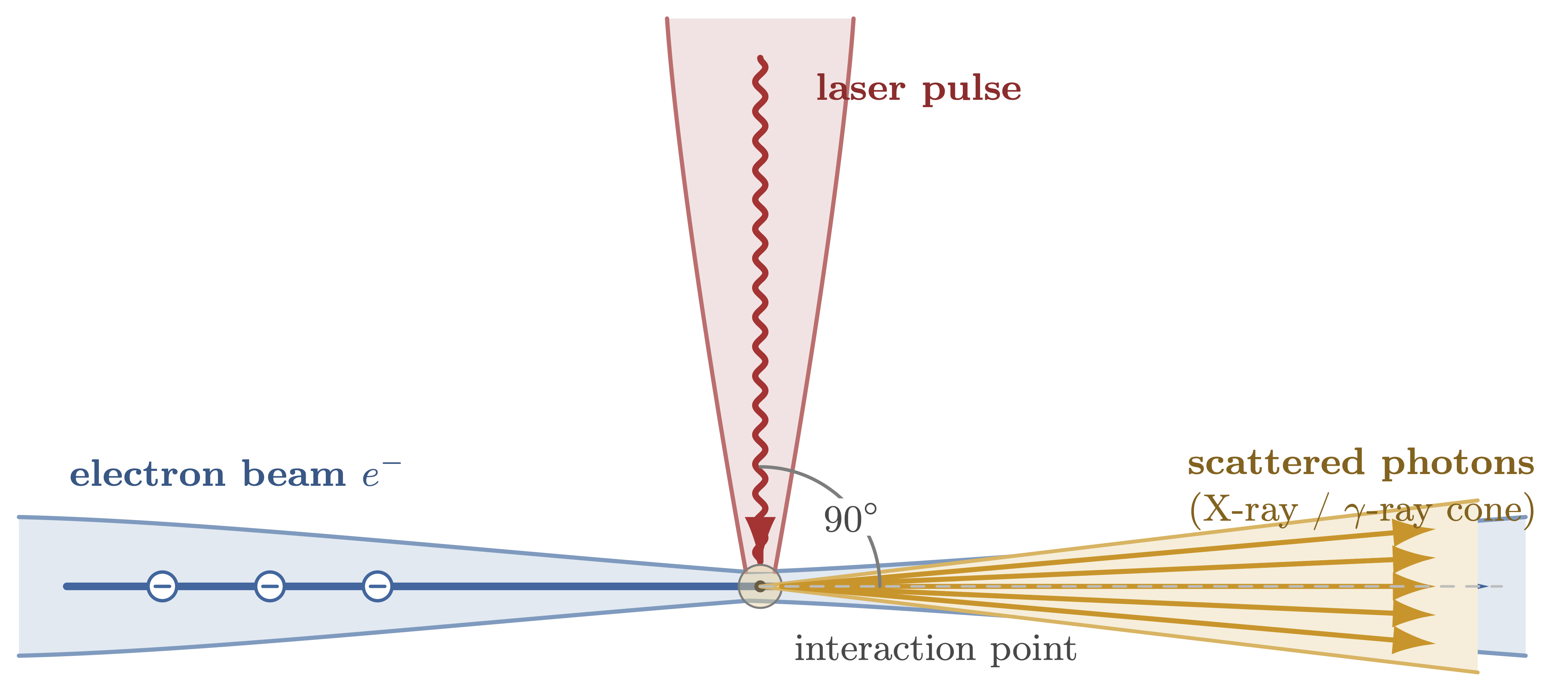

The baseline geometry used here is a \(90^\circ\) crossing between a 1 GeV electron beam along \(\hat z\) and a laser photon beam along \(\hat x\) with wavelength 1030 nm.

Inverse Compton scattering

2. Physics Models

2.1. Basic Kinematics

For a laser wavelength \(\lambda_L\), the photon energy is

\[\omega_L = \frac{2 \pi \hbar c}{\lambda_L} . \label{eq:ics-laser-energy}\]

For an electron with total energy \(E_e\) and momentum magnitude \(p_e = \sqrt{E_e^2 - m_e^2}\), the exact forward-scattered photon energy in the 90 degree benchmark geometry is

\[\omega_\gamma' = \frac{E_e \, \omega_L} {\omega_L + \frac{m_e^2}{E_e + p_e}} . \label{eq:ics-forward-energy}\]

The current OPALX helper uses this numerically stable form directly in the unit benchmark.

2.2. Rest-Frame Model

The exact linear Compton kernel is evaluated in the electron rest frame. Let \(\omega_1\) be the incoming photon energy there and let \(\Theta^*\) be the photon scattering angle. The scattered photon energy is

\[\omega_2(\Theta^*) = \frac{\omega_1} {1 + (\omega_1/m_e)(1 - \cos \Theta^*)} . \label{eq:ics-erf-energy}\]

The unpolarized Klein-Nishina differential cross section is

\[\frac{d\sigma}{d\Omega^*} = \frac{r_e^2}{2} \left(\frac{\omega_2}{\omega_1}\right)^2 \left( \frac{\omega_1}{\omega_2} + \frac{\omega_2}{\omega_1} - \sin^2 \Theta^* \right) . \label{eq:ics-klein-nishina}\]

Changing variables from \(\cos\Theta^*\) to \(\omega_2\) gives the one-dimensional energy spectrum in the rest frame,

\[\frac{d\sigma}{d\omega_2} = 2\pi \frac{d\sigma}{d\Omega^*} \frac{m_e}{\omega_2^2} . \label{eq:ics-dsigma-domega}\]

with exact support \(\omega_2 \in [\omega_1/(1+2\omega_1/m_e),\,\omega_1\)].

The exact total Klein-Nishina cross section can be written with \(\kappa = \omega_1/m_e\) as

\[\sigma_{\mathrm{KN}} = 2\pi r_e^2 \left[ \frac{1+\kappa}{\kappa^3} \left( \frac{2\kappa(1+\kappa)}{1+2\kappa} - \ln(1+2\kappa) \right) + \frac{\ln(1+2\kappa)}{2\kappa} - \frac{1+3\kappa}{(1+2\kappa)^2} \right] . \label{eq:ics-total-cross-section}\]

For \(\kappa \ll 1\) this approaches the Thomson limit

\[\sigma_T = \frac{8\pi}{3} r_e^2 . \label{eq:ics-thomson}\]

3. Implemented OPALX Benchmark

The current OPALX implementation is the CAIN-validated benchmark path on the laser-element-1 branch. The relevant code files are:

The benchmark remains deliberately narrow:

  • no tracked LASER interaction,

  • no photon bunch population,

  • no luminosity or overlap integration beyond the benchmark setup.

The validated observables are now:

  • ✓ photon energy spectrum,

  • ✓ photon laboratory polar-angle spectrum,

  • ✓ joint \(E_\gamma\) vs. \(\theta_{\gamma,\mathrm{lab}}\) map,

  • ✓ finite-beam energy, angle, and joint spectra,

  • ✓ finite-beam plus energy-spread energy, angle, and joint spectra,

  • ✓ overlap-restricted finite-beam energy and angle spectra.

4. Results of Code Comparison

The current CAIN-backed OPALX benchmark covers weak-field linear inverse Compton scattering for:

  • electron total energy 1 GeV,

  • laser wavelength 1030 nm,

  • crossing angle \(90^\circ\),

  • unpolarized laser STOKES=(0,0,0),

  • CAIN weak-field parameter \(\xi = 0.2955 < 0.3\).

Single-electron benchmark agreement:

  • ✓ energy spectrum, deterministic: mean difference about 0.5%, \(L_1\) about 0.0767

  • ✓ energy spectrum, sampled: mean difference about 0.45%, \(L_1\) about 0.0763

  • ✓ lab-angle spectrum, deterministic: mean difference about 4.0%, \(L_1\) about 0.0400

  • ✓ lab-angle spectrum, sampled: mean difference about 1.3%, \(L_1\) about 0.0250

  • ✓ joint \(E_\gamma\)--\(\theta_{\gamma,\mathrm{lab}}\) map, deterministic: mean-energy difference about 0.48%, mean-angle difference about 4.03%, \(L_1\) about 0.0849

  • ✓ joint \(E_\gamma\)--\(\theta_{\gamma,\mathrm{lab}}\) map, sampled: mean-energy difference about 0.44%, mean-angle difference about 1.21%, \(L_1\) about 0.0709

Finite-beam benchmark agreement:

  • ✓ baseline finite beam (sigma_x = sigma_y = 1 mm, sigma_{x'} = sigma_{y'} = 1 mrad): energy mean difference about 0.58%, \(L_1\) about 0.0316

  • ✓ baseline finite beam angle spectrum: mean difference about 0.21%, \(L_1\) about 0.0142

  • ✓ baseline finite-beam joint \(E_\gamma\)--\(\theta_{\gamma,\mathrm{lab}}\) map: mean-energy difference about 0.58%, mean-angle difference about 0.11%, \(L_1\) about 0.0741

  • ✓ finite beam with relative energy spread sigma_E / E = 1.0e-3: energy mean difference about 0.57%, \(L_1\) about 0.0305

  • ✓ finite beam with relative energy spread sigma_E / E = 1.0e-3 angle spectrum: mean difference about 0.17%, \(L_1\) about 0.0157

  • ✓ finite beam with relative energy spread sigma_E / E = 1.0e-3 joint \(E_\gamma\)--\(\theta_{\gamma,\mathrm{lab}}\) map: mean-energy difference about 0.57%, mean-angle difference about 0.14%, \(L_1\) about 0.0686

  • ✓ overlap-restricted finite-beam energy spectrum: mean difference about 0.71%, \(L_1\) about 0.0289

  • ✓ overlap-restricted finite-beam angle spectrum: mean difference about 0.084%, \(L_1\) about 0.0135

Single-electron overlays:

linear compton 90deg xi029 comparison

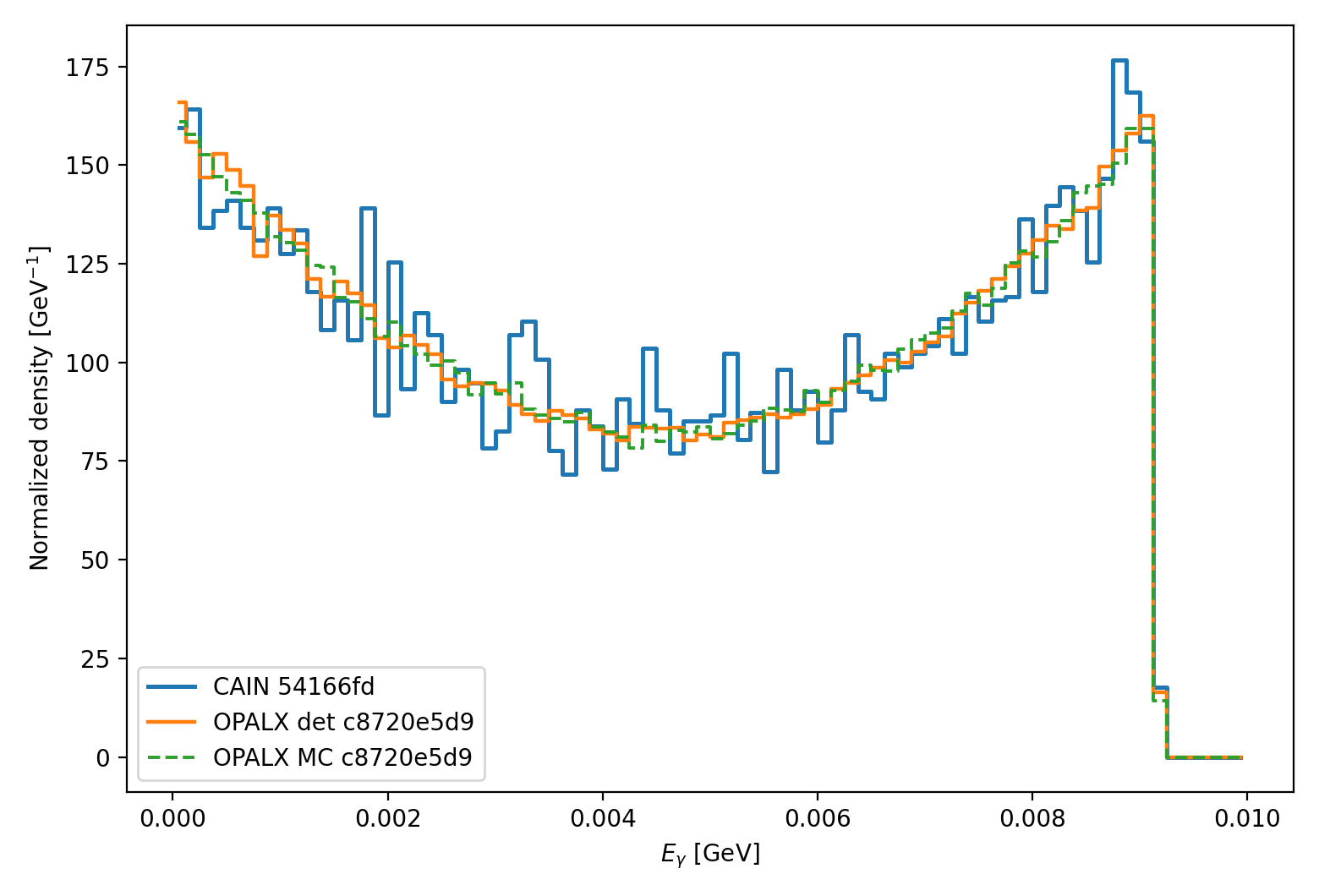

Figure 1. Weak-field 90-degree linear-Compton photon energy spectrum. The figure compares the CAIN reference, the OPALX deterministic benchmark, and the OPALX Monte Carlo benchmark for Ee = 1 GeV, λL = 1030 nm, and ξ = 0.2955.

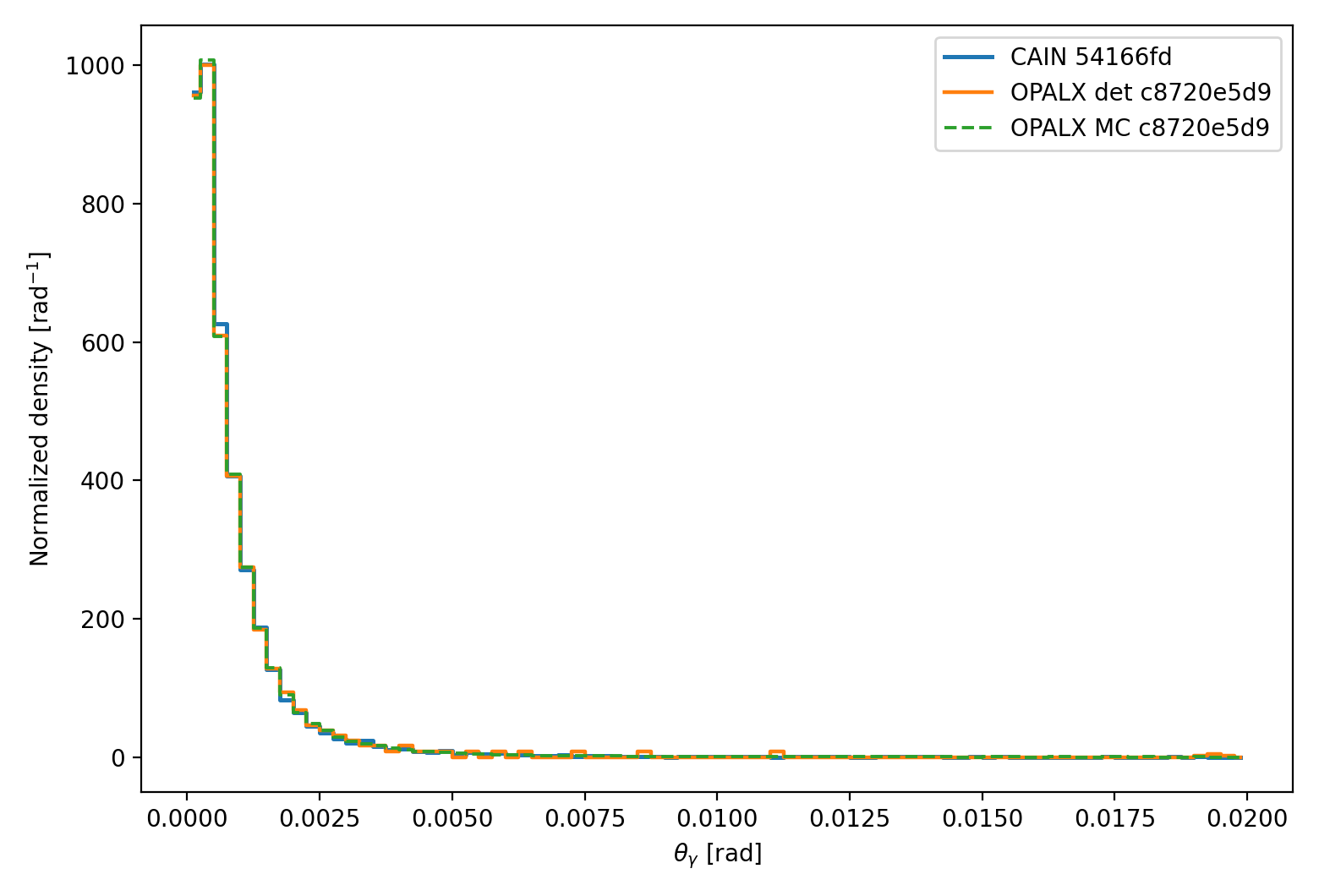

linear compton 90deg xi029 theta comparison
Figure 2. Weak-field 90-degree linear-Compton photon laboratory polar-angle spectrum. The figure compares the CAIN reference, the OPALX deterministic benchmark, and the OPALX Monte Carlo benchmark on the common angular histogram grid.
linear compton 90deg xi029 joint comparison

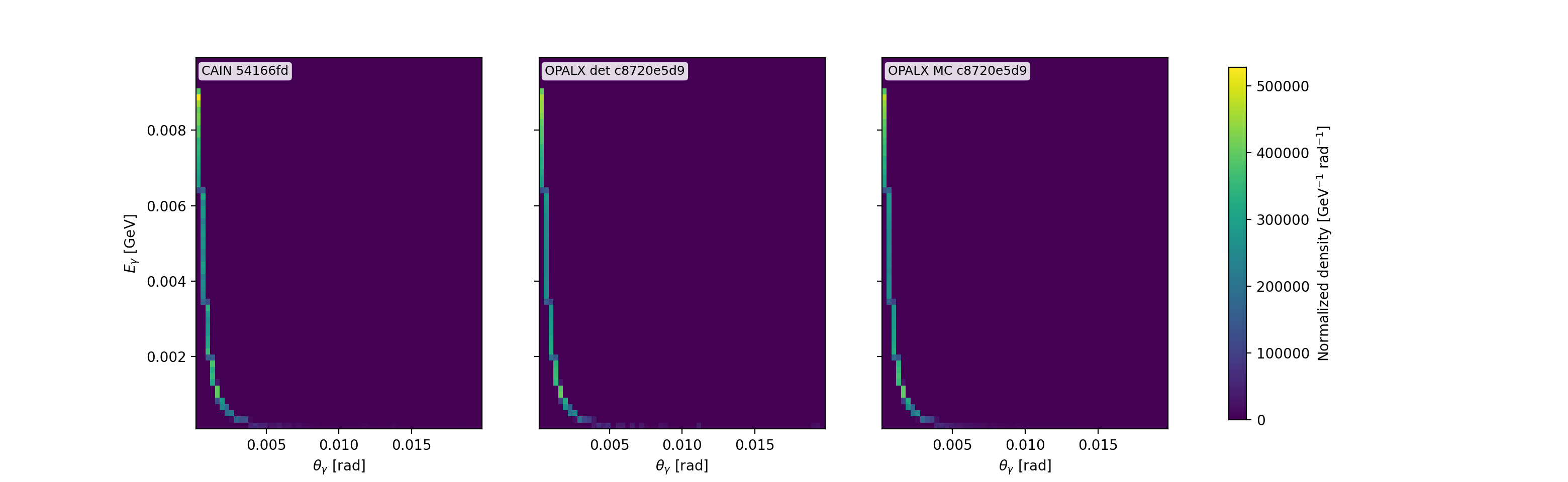

Figure 3. Weak-field 90-degree linear-Compton joint photon spectrum. The panels show the CAIN reference, the OPALX deterministic benchmark, and the OPALX Monte Carlo Eγ versus θγ,lab density on the common 2D grid.

Finite-beam overlays:

linear compton 90deg xi029 finite beam comparison
Figure 4. Finite-beam linear-Compton photon energy spectrum for the benchmark beam with σx = σy = 1 mm and σx' = σy' = 1 mrad. The figure compares CAIN and the OPALX Monte Carlo benchmark.
linear compton 90deg xi029 finite beam theta comparison

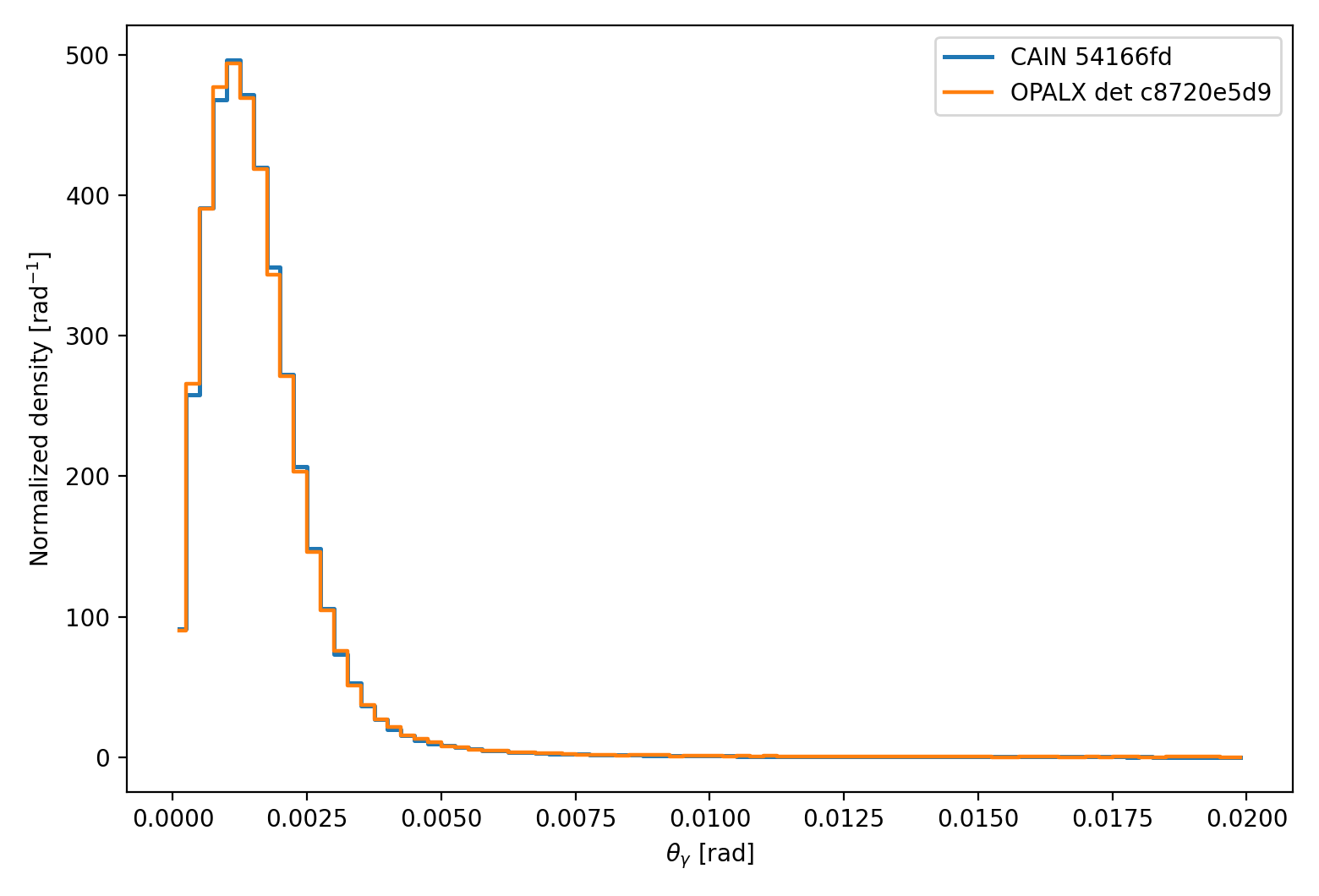

Figure 5. Finite-beam linear-Compton photon laboratory polar-angle spectrum for the same benchmark beam. The figure compares CAIN and the OPALX Monte Carlo benchmark on the common angular histogram grid.
linear compton 90deg xi029 finite beam energy spread comparison

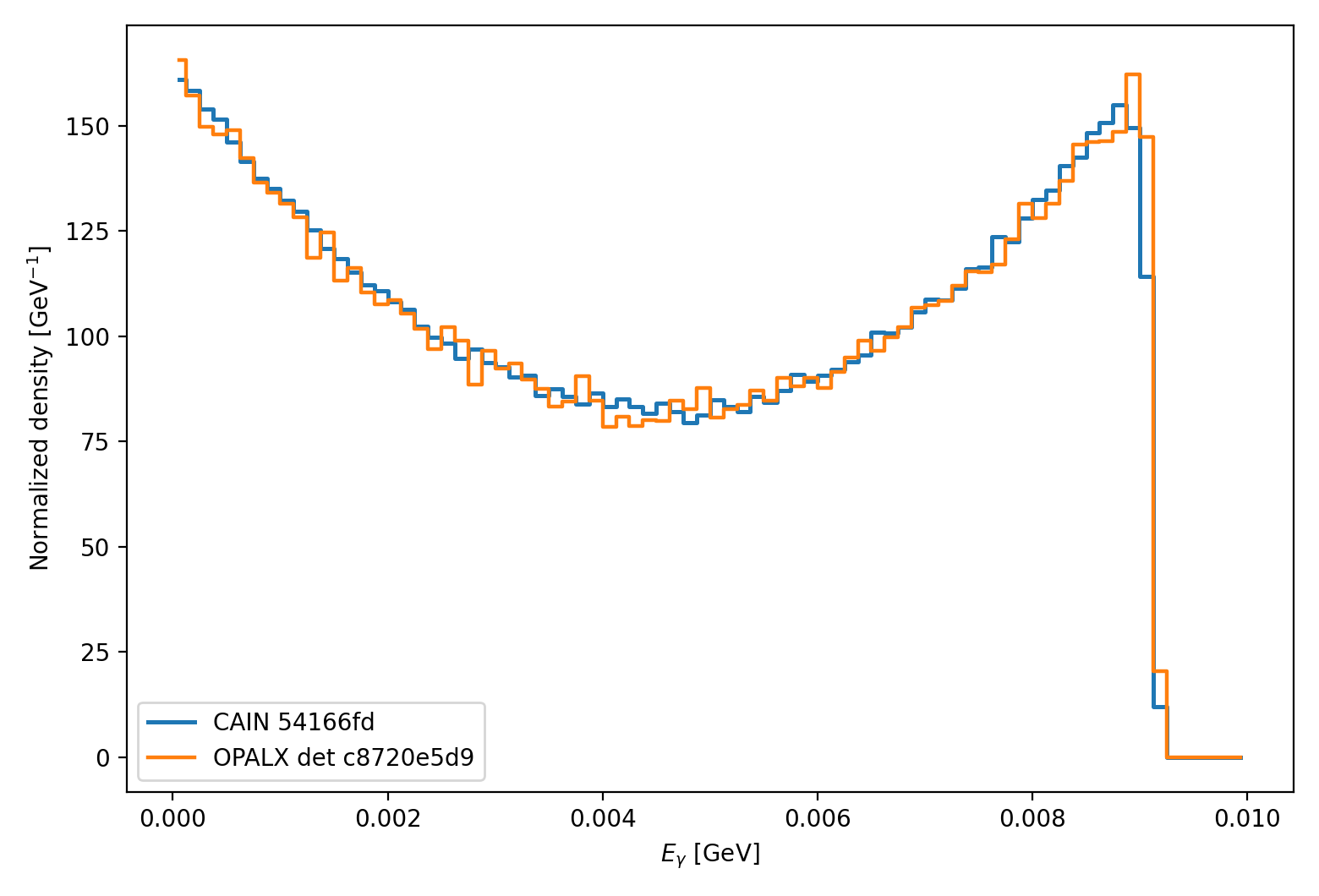

Figure 6. Finite-beam linear-Compton photon energy spectrum with additional electron-beam relative energy spread σE/E = 1e-3. The figure compares CAIN and the OPALX Monte Carlo benchmark.
linear compton 90deg xi029 finite beam energy spread theta comparison

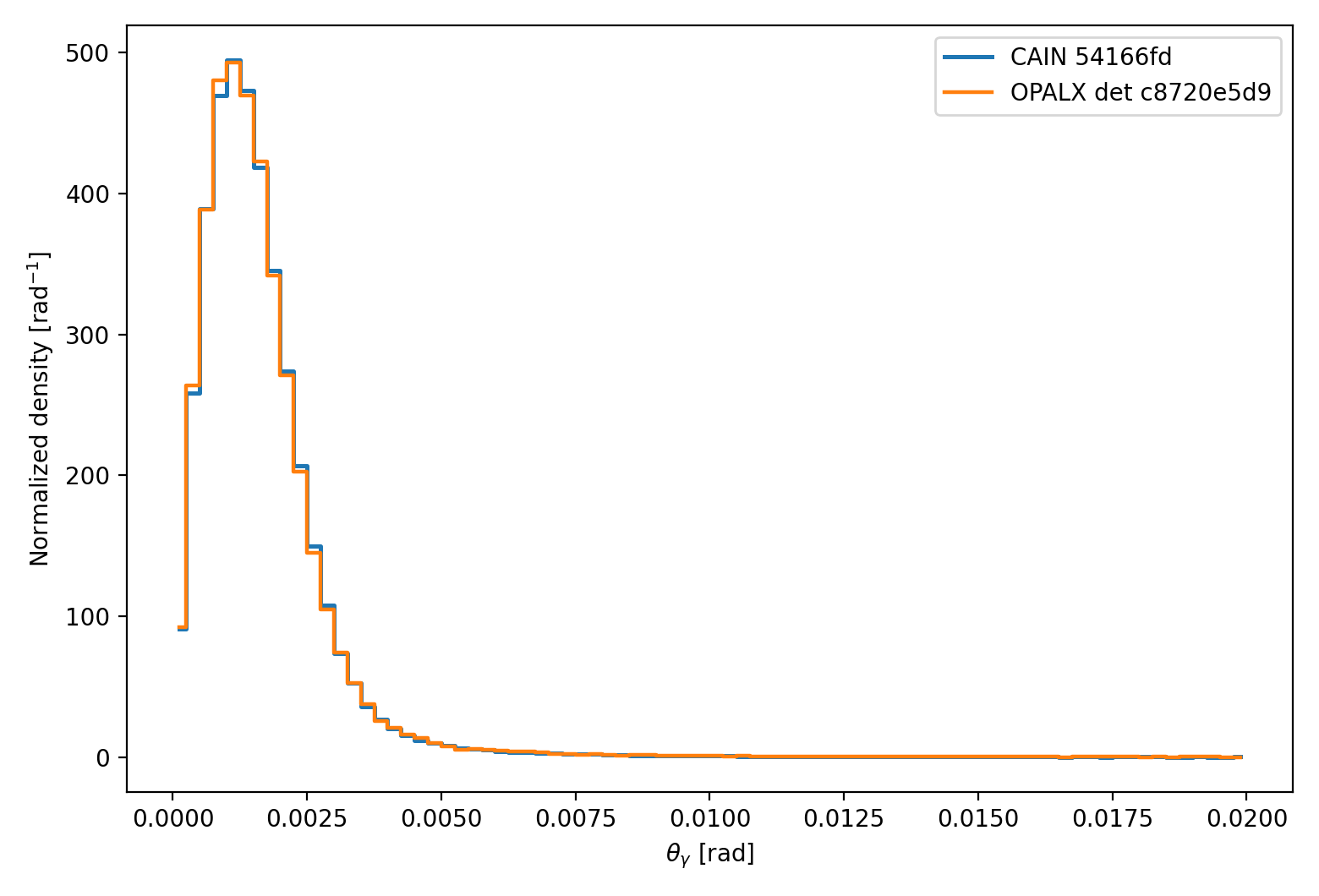

Figure 7. Finite-beam linear-Compton photon laboratory polar-angle spectrum with additional electron-beam relative energy spread σE/E = 1e-3. The figure compares CAIN and the OPALX Monte Carlo benchmark.
linear compton 90deg xi029 finite beam joint comparison

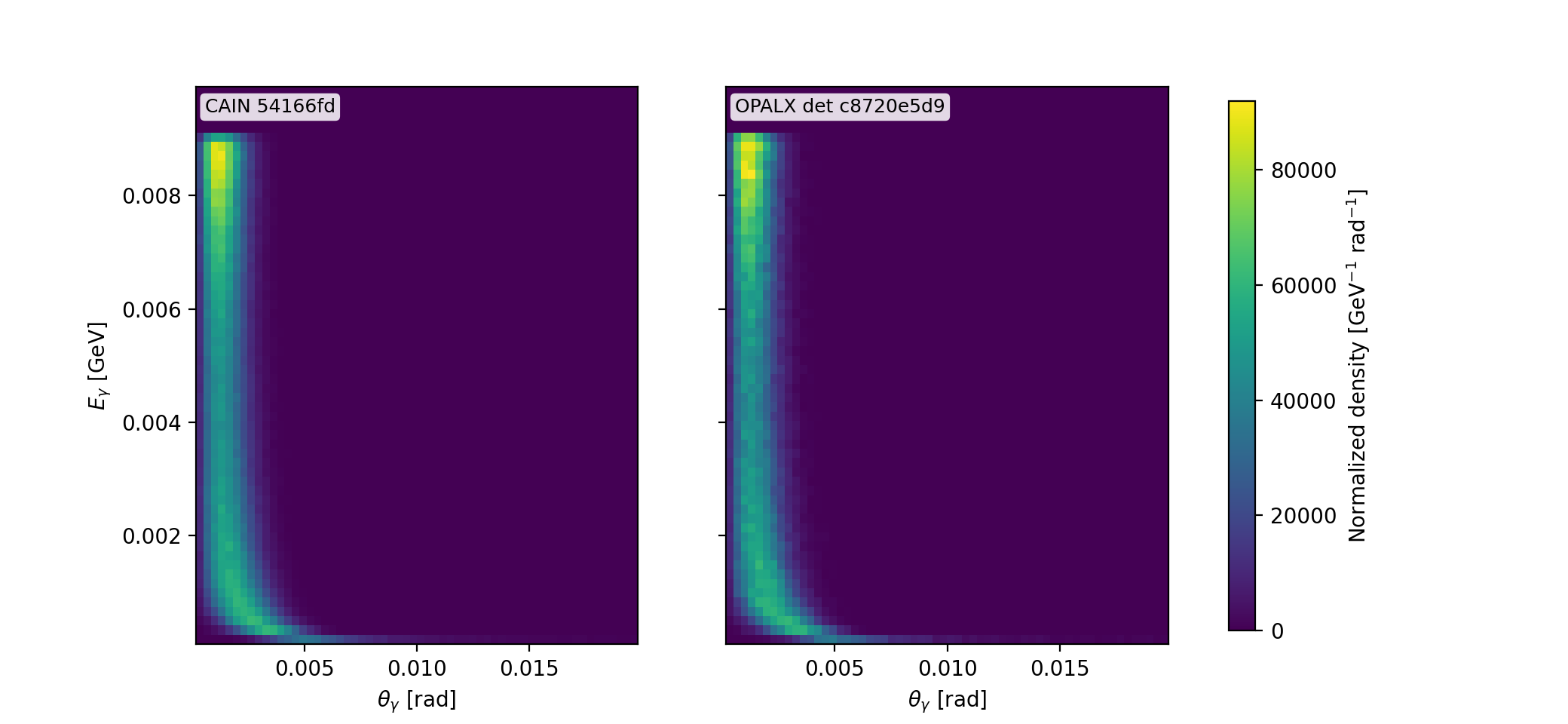

Figure 8. Finite-beam joint linear-Compton photon spectrum for the benchmark beam with σx = σy = 1 mm and σx' = σy' = 1 mrad. The panels compare the CAIN reference and the OPALX Monte Carlo Eγ versus θγ,lab density on the common 2D grid.
linear compton 90deg xi029 finite beam energy spread joint comparison
Figure 9. Finite-beam joint linear-Compton photon spectrum with additional electron-beam relative energy spread σE/E = 1e-3. The panels compare the CAIN reference and the OPALX Monte Carlo Eγ versus θγ,lab density on the common 2D grid.
linear compton 90deg xi029 finite beam overlap comparison
Figure 10. Overlap-restricted finite-beam linear-Compton photon energy spectrum. The benchmark keeps the same finite beam and conditions the interaction on the beam-laser overlap through the benchmark Rayleigh and pulse-length scales. The figure compares CAIN and the OPALX Monte Carlo benchmark.
linear compton 90deg xi029 finite beam overlap theta comparison
Figure 11. Overlap-restricted finite-beam linear-Compton photon laboratory polar-angle spectrum for the same overlap-conditioned benchmark. The figure compares CAIN and the OPALX Monte Carlo benchmark on the common angular histogram grid.

5. Build and Run

The CAIN build helper is now shared across the gamma-gamma notes in the common workspace ~/git/cain.

From ~/git/cain:

./build-cain.sh --download
./build-cain.sh --compile

The preferred one-shot workflow is run from the docs tree:

cd ~/git/OPALX-project.github.io/gamma-gamma
./generate-gamma-gamma-results.sh --opalx-build /path/to/opalx-laser/build_openmp

This top-level driver:

  • builds the OPALX gamma-gamma benchmark targets,

  • runs the inverse-Compton and Breit-Wheeler unit/regression suites,

  • regenerates the CAIN and OPALX benchmark data for both notes,

  • republishes the comparison figures, and

  • renders the gamma-gamma note pages.

If only the linear-Compton assets need to be refreshed, use:

cd ~/git/cain
./generate-linear-compton-results.sh --opalx-build /path/to/opalx-laser/build_openmp

This script:

  • runs the CAIN decks ~/git/cain/cain-linear-compton-90deg.i, ~/git/cain/cain-linear-compton-90deg-finite-beam.i, ~/git/cain/cain-linear-compton-90deg-finite-beam-energy-spread.i, and ~/git/cain/cain-linear-compton-90deg-finite-beam-overlap.i,

  • regenerates the stored CAIN histogram references in reference-data/,

  • runs the OPALX benchmark executable LinearComptonSpectrumBenchmark,

  • regenerates the published 1D and 2D comparison plots in reference-data/.

The script expects:

  • a built OPALX benchmark executable in the supplied build directory,

  • a CAIN executable at ~/git/cain/CAIN-build/cain, unless overridden by --cain-bin,

  • the four CAIN decks in ~/git/cain, unless overridden by --cain-deck-dir.

The relevant OPALX build target is:

cmake --build /path/to/opalx-laser/build_openmp \
  --target LinearComptonSpectrumBenchmark TestLinearCompton TestLinearComptonSpectrum -j4

6. References

Appendix A: CAIN Mapping

CAIN evaluates the linear Compton kinematics by boosting the laser photon into the electron rest frame, applying the recoil there, and boosting the scattered photon back to the laboratory frame. In CAIN’s LNCPGN, the incoming photon energy in the electron rest frame is

\[\omega_1 = \gamma \, \omega_L \, (1 - \beta \cos \alpha) . \label{eq:ics-cain-w1}\]

For the present benchmark \(\cos\alpha = 0\), so

\[\omega_1 = \gamma \, \omega_L . \label{eq:ics-cain-w1-90deg}\]

This is the CAIN mapping reproduced by the current OPALX helper and benchmark path.
