RealDiracMatrix Class Reference

#include <RealDiracMatrix.h>

Public Types
typedef boost::numeric::ublas::compressed_matrix< double, boost::numeric::ublas::row_major >	sparse_matrix_t
	Sparse matrix type definition.
typedef boost::numeric::ublas::matrix< double >	matrix_t
	Dense matrix type definition.
typedef boost::numeric::ublas::vector< double, std::vector< double > >	vector_t
	Dense vector type definition.

Public Member Functions
	RealDiracMatrix ()
	Default constructor (sets only NumOfRDMs and DimOfRDMs)
sparse_matrix_t	getRDM (short)
void	diagonalize (matrix_t &, sparse_matrix_t &, sparse_matrix_t &)
sparse_matrix_t	diagonalize (matrix_t &)
matrix_t	symplex (const matrix_t &)

Private Member Functions
void	transform (matrix_t &, short, double, sparse_matrix_t &, sparse_matrix_t &)
void	transform (short, double, sparse_matrix_t &, sparse_matrix_t &)
void	update (matrix_t &sigma, short i, sparse_matrix_t &R, sparse_matrix_t &invR)

Detailed Description

Definition at line 31 of file RealDiracMatrix.h.

Member Typedef Documentation

matrix_t

typedef boost::numeric::ublas::matrix<double> RealDiracMatrix::matrix_t

Dense matrix type definition.

Definition at line 41 of file RealDiracMatrix.h.

sparse_matrix_t

typedef boost::numeric::ublas::compressed_matrix< double, boost::numeric::ublas::row_major > RealDiracMatrix::sparse_matrix_t

Sparse matrix type definition.

Definition at line 38 of file RealDiracMatrix.h.

vector_t

typedef boost::numeric::ublas::vector< double, std::vector<double> > RealDiracMatrix::vector_t

Dense vector type definition.

Definition at line 46 of file RealDiracMatrix.h.

Constructor & Destructor Documentation

RealDiracMatrix()

RealDiracMatrix::RealDiracMatrix

(

)

Default constructor (sets only NumOfRDMs and DimOfRDMs)

Definition at line 32 of file RealDiracMatrix.cpp.

Member Function Documentation

diagonalize() [1/2]

RealDiracMatrix::sparse_matrix_t RealDiracMatrix::diagonalize

(

matrix_t &

sigma

)

Diagonalizes (in-place) the 4x4 sigma matrix. This algorithm is Implemented according to https://arxiv.org/abs/1205.3601

Parameters

sigma

is the 4x4 sigma matrix

Returns

the inverse of the total transformation

Definition at line 149 of file RealDiracMatrix.cpp.

References getRDM(), and update().

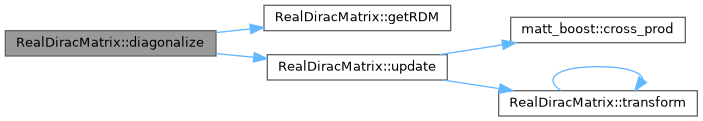

Here is the call graph for this function:

diagonalize() [2/2]

void RealDiracMatrix::diagonalize	(	matrix_t &	Ms,
		sparse_matrix_t &	R,
		sparse_matrix_t &	invR
	)

Brings a 4x4 symplex matrix into Hamilton form and computes the transformation matrix and its inverse

Parameters

Ms	is a 4x4 symplex matrix
R	is the 4x4 transformation matrix (gets computed)
invR	is the 4x4 inverse transformation matrix (gets computed)

Definition at line 62 of file RealDiracMatrix.cpp.

References matt_boost::cross_prod(), getRDM(), matt_boost::trace(), and transform().

Referenced by SigmaGenerator::decouple(), and Distribution::generateMatchedGauss().

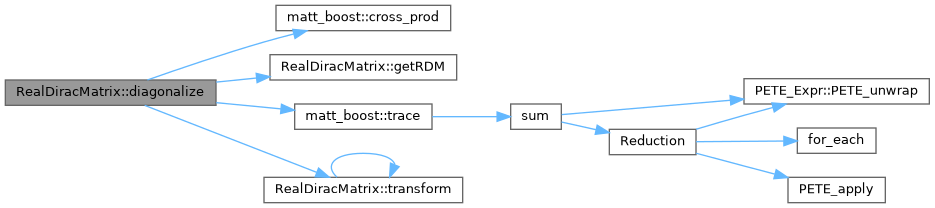

Here is the call graph for this function:

getRDM()

RealDiracMatrix::sparse_matrix_t RealDiracMatrix::getRDM

(

short

i

)

Parameters

i	specifying the matrix (has to be in the range from 0 to 15)

Returns

the i-th Real Dirac matrix

Definition at line 35 of file RealDiracMatrix.cpp.

Referenced by diagonalize(), diagonalize(), symplex(), and transform().

symplex()

RealDiracMatrix::matrix_t RealDiracMatrix::symplex

(

const matrix_t &

M

)

Parameters

M	4x4 real-valued matrix

Returns

the symplex part of a 4x4 real-valued matrix

Definition at line 169 of file RealDiracMatrix.cpp.

References getRDM().

Referenced by SigmaGenerator::decouple().

Here is the call graph for this function:

transform() [1/2]

void RealDiracMatrix::transform ( matrix_t &  M, short  i, double  phi, sparse_matrix_t &  Rtot, sparse_matrix_t &  invRtot  )

private

Applies a rotation to the matrix M by a given angle

Parameters

M	is the matrix to be transformed
i	is the i-th RDM used for transformation
phi	is the angle of rotation
Rtot	is a reference to the current transformation matrix
invRtot	is a reference to the inverse of the current transformation matrix

Definition at line 178 of file RealDiracMatrix.cpp.

References transform().

Referenced by diagonalize(), transform(), and update().

Here is the call graph for this function:

transform() [2/2]

void RealDiracMatrix::transform ( short  i, double  phi, sparse_matrix_t &  R, sparse_matrix_t &  invR  )

private

Obtain transformation matrices.

Parameters

i	is the i-th RDM used for transformation
phi	is the angle of rotation
R	is a reference to the transformation matrix
invR	is a reference to the inverse of the transformation matrix

Definition at line 194 of file RealDiracMatrix.cpp.

References getRDM().

Here is the call graph for this function:

update()

void RealDiracMatrix::update ( matrix_t &  sigma, short  i, sparse_matrix_t &  R, sparse_matrix_t &  invR  )

private

Update quantites to decouple the sigma-matrix

Parameters

sigma	current state of sigma-matrix
i	is the i-th step
R	is a reference to the transformation matrix
invR	is a reference to the inverse of the transformation matrix

Definition at line 211 of file RealDiracMatrix.cpp.

References matt_boost::cross_prod(), and transform().

Referenced by diagonalize().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/Distribution/RealDiracMatrix.h
• src/Distribution/RealDiracMatrix.cpp
