Base class for all bending magnets. More...

#include <OpalBend.h>

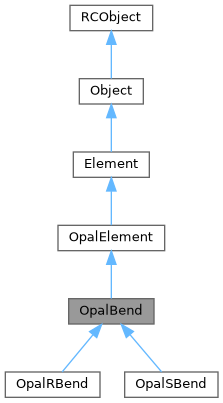

Inheritance diagram for OpalBend:

[legend]

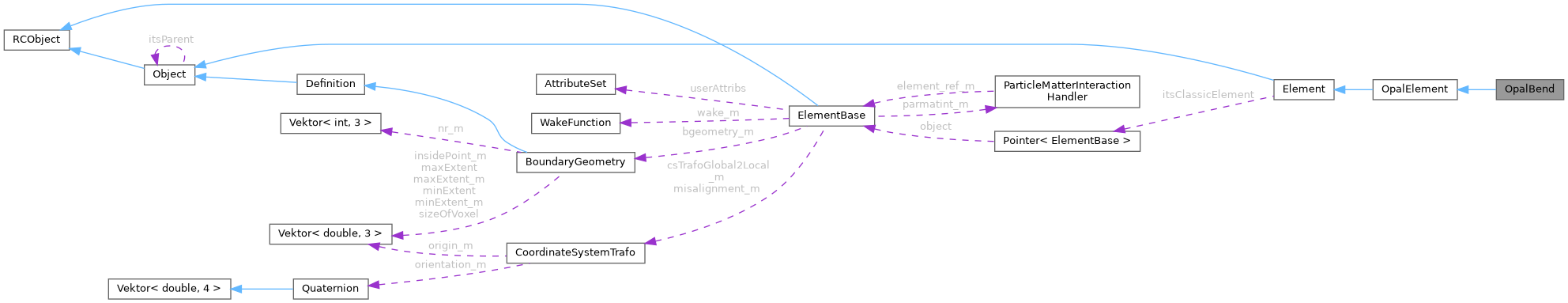

Collaboration diagram for OpalBend:

[legend]

Public Types
enum	{ ANGLE = COMMON , K0 , K0S , K1 , K1S , K2 , K2S , K3 , K3S , E1 , E2 , H1 , H2 , HGAP , FINT , SLICES , STEPSIZE , FMAPFN , GAP , HAPERT , ROTATION , DESIGNENERGY , GREATERTHANPI , NSLICES , SIZE }
	The attribute numbers for OPAL bend magnets. More...

Public Types inherited from OpalElement
enum	{ TYPE , APERT , LENGTH , ELEMEDGE , WAKEF , PARTICLEMATTERINTERACTION , ORIGIN , ORIENTATION , X , Y , Z , THETA , PHI , PSI , DX , DY , DZ , DTHETA , DPHI , DPSI , OUTFN , DELETEONTRANSVERSEEXIT , COMMON }
	The common attributes for all elements. More...

Public Types inherited from Element
enum	ReferenceType { IS_ENTRY , IS_CENTRE , IS_EXIT }
	Reference for element positioning. More...

Public Member Functions
	OpalBend (const char name, const char help)
	Exemplar constructor.

virtual	~OpalBend ()

virtual void	print (std::ostream &) const
	Print the bend magnet.

Public Member Functions inherited from OpalElement
virtual	~OpalElement ()

virtual double	getLength () const
	Return element length.

const std::string	getTypeName () const
	Return the element's type name.

std::pair< ApertureType, std::vector< double > >	getApert () const

const std::string	getWakeF () const
	Return the element's type name.

const std::string	getParticleMatterInteraction () const

const std::string	getWMaterial () const

const std::string	getWakeGeom () const

std::vector< double >	getWakeParam () const

const std::string	getWakeConductivity () const

virtual void	parse (Statement &)
	Parse the element.

virtual void	update ()
	Update the embedded CLASSIC element.

virtual void	updateUnknown (ElementBase *)
	Transmit the `‘unknown’' (not known to OPAL) attributes to CLASSIC.

Public Member Functions inherited from Element
virtual	~Element ()

virtual bool	canReplaceBy (Object *object)
	Test if replacement is allowed.

virtual const std::string	getCategory () const
	Return the object category as a string.

virtual bool	shouldTrace () const
	Trace flag.

virtual bool	shouldUpdate () const
	Update flag.

virtual double	getEntrance (ReferenceType) const
	Return arc length from origin to entrance (negative !).

virtual double	getExit (ReferenceType) const
	Return arc length from origin to exit (positive !).

virtual void	setShared (bool)
	Set shared flag.

ElementBase *	getElement () const
	Return the embedded CLASSIC element.

void	setElement (ElementBase *)
	Assign new CLASSIC element.

Public Member Functions inherited from Object
virtual	~Object ()

virtual Object *	clone (const std::string &name)=0
	Return a clone.

void	copyAttributes (const Object &)
	Copy attributes from another object.

virtual void	execute ()
	Execute the command.

virtual Attribute *	findAttribute (const std::string &name)
	Find an attribute by name.

virtual const Attribute *	findAttribute (const std::string &name) const
	Find an attribute by name.

virtual Object *	makeTemplate (const std::string &, TokenStream &, Statement &)
	Macro handler function.

virtual Object *	makeInstance (const std::string &name, Statement &, const Parser *)
	Macro handler function.

virtual void	parseShortcut (Statement &, bool eval=true)
	Parser for single-attribute commands.

virtual void	printValue (std::ostream &) const

virtual void	printHelp (std::ostream &) const
	Print help.

virtual void	replace (Object oldObject, Object newObject)
	Replace references.

bool	isBuiltin () const
	True, if [b]this[/b] is a built-in object.

virtual bool	isShared () const
	Shared flag.

void	setDirty (bool)
	Set/reset the [b]modified[/b] flag.

bool	isDirty () const
	True, if the [b]modified[/b] flag is set.

void	setFlag (bool)
	Flag/unflag this object, e. g. to control output of objects for.

bool	isFlagged () const
	True, if [b]this[/b] is flagged by setFlag(true).

const Object *	getBaseObject () const
	Return the object's base type object.

const std::string &	getOpalName () const
	Return object name.

Object *	getParent () const
	Return parent pointer.

bool	isTreeMember (const Object *subTree) const
	Test for tree membership.

void	setOpalName (const std::string &name)
	Set object name.

void	setParent (Object *)
	Set parent object.

void	clear ()
	Clear the occurrence counter.

int	increment ()
	Increment and return the occurrence counter.

int	occurrenceCount ()
	Return the occurrence counter.

void	registerReference (Invalidator *a)
	Register a reference to this object.

void	unregisterReference (Invalidator *a)
	Unegister a reference to this object.

void	registerOwnership (const AttributeHandler::OwnerType &itsClass) const

Public Member Functions inherited from RCObject
int	addReference () const
	Increment reference count.

int	removeReference () const
	Decrement the reference count.

bool	isShared () const
	Test for sharing.

Protected Member Functions
	OpalBend (const std::string &name, OpalBend *parent)
	Clone constructor.

Protected Member Functions inherited from OpalElement
	OpalElement (int size, const char name, const char help)
	Exemplar constructor.

	OpalElement (const std::string &name, OpalElement *parent)
	Clone constructor.

void	registerOwnership () const

Protected Member Functions inherited from Element
	Element (int size, const char name, const char help)
	Constructor for exemplars.

	Element (const std::string &name, Element *parent)
	Constructor for clones.

Protected Member Functions inherited from Object
	Object (int size, const char name, const char help)
	Constructor for exemplars.

	Object (const std::string &name, Object *parent)
	Constructor for clones.

Protected Member Functions inherited from RCObject
	RCObject ()
	Default constructor.

	RCObject (const RCObject &)
	Copy constructor.

virtual	~RCObject ()=0

RCObject &	operator= (const RCObject &right)

Private Member Functions
	OpalBend (const OpalBend &)

void	operator= (const OpalBend &)

Additional Inherited Members
Static Public Member Functions inherited from Element
static Element *	find (const std::string &name)
	Find named Element.

Public Attributes inherited from Object
std::vector< Attribute >	itsAttr
	The object attributes.

Static Protected Member Functions inherited from OpalElement
static void	printMultipoleStrength (std::ostream &os, int order, int &len, const std::string &sName, const std::string &tName, const Attribute &length, const Attribute &vNorm, const Attribute &vSkew)
	Print multipole components in OPAL-8 format.

static void	printAttribute (std::ostream &os, const std::string &name, const std::string &image, int &len)
	Print an attribute with a OPAL-8 name (as an expression).

static void	printAttribute (std::ostream &os, const std::string &name, double value, int &len)
	Print an attribute with a OPAL-8 name (as a constant).

Protected Attributes inherited from Object
bool	builtin
	Built-in flag.

bool	modified
	Dirty flag.

bool	flagged
	Object flag.

Detailed Description

Base class for all bending magnets.

Definition at line 30 of file OpalBend.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

The attribute numbers for OPAL bend magnets.

Enumerator
ANGLE
K0
K0S
K1
K1S
K2
K2S
K3
K3S
E1
E2
H1
H2
HGAP
FINT
SLICES
STEPSIZE
FMAPFN
GAP
HAPERT
ROTATION
DESIGNENERGY
GREATERTHANPI
NSLICES
SIZE

Definition at line 35 of file OpalBend.h.

Constructor & Destructor Documentation

◆ OpalBend() [1/3]

OpalBend::OpalBend	(	const char *	name,
		const char *	help
	)

Exemplar constructor.

Definition at line 30 of file OpalBend.cpp.

References ANGLE, DESIGNENERGY, E1, E2, FINT, FMAPFN, GAP, GREATERTHANPI, H1, H2, HAPERT, HGAP, Object::itsAttr, K0, K0S, K1, K1S, K2, K2S, K3, K3S, Attributes::makeBool(), Attributes::makeReal(), Attributes::makeString(), NSLICES, ROTATION, SLICES, and STEPSIZE.

Here is the call graph for this function:

◆ ~OpalBend()

OpalBend::~OpalBend ( )

virtual

Definition at line 90 of file OpalBend.cpp.

◆ OpalBend() [2/3]

OpalBend::OpalBend	(	const std::string &	name,
		OpalBend *	parent
	)

protected

Clone constructor.

Definition at line 85 of file OpalBend.cpp.

◆ OpalBend() [3/3]

OpalBend::OpalBend ( const OpalBend & )

private

Member Function Documentation

◆ operator=()

void OpalBend::operator= ( const OpalBend & )

private

◆ print()

void OpalBend::print ( std::ostream & os ) const

virtual

Print the bend magnet.

Reimplemented from OpalElement.

Definition at line 94 of file OpalBend.cpp.

References OpalElement::print().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/Elements/OpalBend.h
src/Elements/OpalBend.cpp
