SinusoidalTimeDependence Class Reference

#include <SinusoidalTimeDependence.h>

Inheritance diagram for SinusoidalTimeDependence:

Collaboration diagram for SinusoidalTimeDependence:

Public Member Functions
	SinusoidalTimeDependence (const std::vector< double > &f, const std::vector< double > &p, const std::vector< double > &a, const std::vector< double > &o)
	SinusoidalTimeDependence ()=default
	~SinusoidalTimeDependence () override=default
double	getValue (double time) override
double	getIntegral (double time) override
SinusoidalTimeDependence *	clone () override
Inform &	print (Inform &os) const
Public Member Functions inherited from AbstractTimeDependence
virtual	~AbstractTimeDependence ()

Private Attributes
std::vector< double >	f_m
std::vector< double >	p_m
std::vector< double >	a_m
std::vector< double >	o_m

Additional Inherited Members
Static Public Member Functions inherited from AbstractTimeDependence
static std::shared_ptr< AbstractTimeDependence >	getTimeDependence (std::string name)
static void	setTimeDependence (std::string name, std::shared_ptr< AbstractTimeDependence > time_dep)
static std::string	getName (std::shared_ptr< AbstractTimeDependence > time_dep)

Detailed Description

Time dependence that follows sum of a set of sinusoids sigma_over_i(a[i] / 2 * sin(2 * pi * f[i] * t + p[i]) + o[i]) a is the peak to peak amplitude, f is the frequency, p is the phase offset, o is the DC offset, t is the time.

Definition at line 34 of file SinusoidalTimeDependence.h.

Constructor & Destructor Documentation

SinusoidalTimeDependence() [1/2]

SinusoidalTimeDependence::SinusoidalTimeDependence	(	const std::vector< double > &	f,
		const std::vector< double > &	p,
		const std::vector< double > &	a,
		const std::vector< double > &	o
	)

Constructor

Parameters

f	the frequencies in Hz; can be of arbitrary length
p	the phase offsets in radians; can be of arbitrary length
a	the peak-to-peak amplitude; can be of arbitrary length
o	the DC offset; can be of arbitrary length (user is responsible for issues like floating point precision).

Definition at line 24 of file SinusoidalTimeDependence.cpp.

SinusoidalTimeDependence() [2/2]

SinusoidalTimeDependence::SinusoidalTimeDependence ( )

default

Default Constructor makes a 0 length polynomial

Referenced by clone().

~SinusoidalTimeDependence()

SinusoidalTimeDependence::~SinusoidalTimeDependence ( )

overridedefault

Destructor does default

Member Function Documentation

clone()

SinusoidalTimeDependence * SinusoidalTimeDependence::clone ( )

overridevirtual

Inheritable clone function

Returns

new SinusoidalTimeDependence that is a copy of this. User owns returned memory.

Implements AbstractTimeDependence.

Definition at line 74 of file SinusoidalTimeDependence.cpp.

References a_m, f_m, o_m, p_m, and SinusoidalTimeDependence().

Here is the call graph for this function:

getIntegral()

double SinusoidalTimeDependence::getIntegral ( double  time )

overridevirtual

Return the integral from 0 to time

Parameters

time	simulation time

Implements AbstractTimeDependence.

Definition at line 52 of file SinusoidalTimeDependence.cpp.

References a, a_m, f_m, o_m, p_m, and Physics::two_pi.

getValue()

double SinusoidalTimeDependence::getValue ( double  time )

overridevirtual

Return the sinusoidal value

Parameters

time	simulation time

Implements AbstractTimeDependence.

Definition at line 30 of file SinusoidalTimeDependence.cpp.

References a, a_m, f_m, o_m, p_m, and Physics::pi.

print()

Inform & SinusoidalTimeDependence::print

(

Inform &

os

)

const

Print the sinusoidals

Parameters

os	"Inform" stream to which the sinusoidals are printed.

Definition at line 78 of file SinusoidalTimeDependence.cpp.

References a_m, endl(), f_m, Inform::flags(), o_m, and p_m.

Referenced by operator<<().

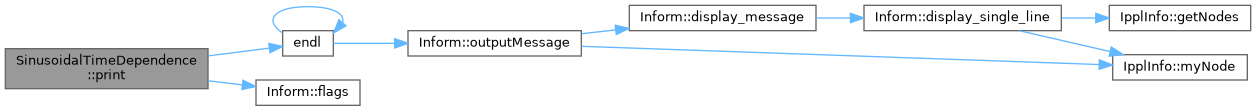

Here is the call graph for this function:

Member Data Documentation

a_m

std::vector<double> SinusoidalTimeDependence::a_m

private

Definition at line 77 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getValue(), and print().

f_m

std::vector<double> SinusoidalTimeDependence::f_m

private

Definition at line 75 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getValue(), and print().

o_m

std::vector<double> SinusoidalTimeDependence::o_m

private

Definition at line 78 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getValue(), and print().

p_m

std::vector<double> SinusoidalTimeDependence::p_m

private

Definition at line 76 of file SinusoidalTimeDependence.h.

Referenced by clone(), getIntegral(), getValue(), and print().

---

The documentation for this class was generated from the following files:

• src/Classic/Algorithms/SinusoidalTimeDependence.h
• src/Classic/Algorithms/SinusoidalTimeDependence.cpp
