#include <AsymmetricEnge.h>

Inheritance diagram for endfieldmodel::AsymmetricEnge:

Collaboration diagram for endfieldmodel::AsymmetricEnge:

Public Member Functions
	AsymmetricEnge ()

	AsymmetricEnge (const std::vector< double > aStart, double x0Start, double lambdaStart, const std::vector< double > aEnd, double x0End, double lambdaEnd)

AsymmetricEnge *	clone () const

std::ostream &	print (std::ostream &out) const

double	function (double x, int n) const

double	getStartOffset () const

double	getCentreLength () const

double	getEndLength () const

std::shared_ptr< Enge >	getEngeStart () const

void	setEngeStart (std::shared_ptr< Enge > eStart)

std::shared_ptr< Enge >	getEngeEnd () const

void	setEngeEnd (std::shared_ptr< Enge > eEnd)

double	getX0Start () const

void	setX0Start (double x0)

double	getX0End () const

void	setX0End (double x0)

void	setMaximumDerivative (size_t n)

void	rescale (double scaleFactor)

Public Member Functions inherited from endfieldmodel::EndFieldModel
virtual	~EndFieldModel ()

Private Member Functions
	AsymmetricEnge (const AsymmetricEnge &rhs)

Private Attributes
std::shared_ptr< Enge >	engeStart_m

std::shared_ptr< Enge >	engeEnd_m

Additional Inherited Members
Static Public Member Functions inherited from endfieldmodel::EndFieldModel
static std::shared_ptr< EndFieldModel >	getEndFieldModel (std::string name)

static void	setEndFieldModel (std::string name, std::shared_ptr< EndFieldModel > efm)

static std::string	getName (std::shared_ptr< EndFieldModel > efm)

Detailed Description

Calculate the AsymmetricEnge function (e.g. for multipole end fields).

AsymmetricEnge function is similar to the Enge function but user can specify enge parameters independently for start and end. So function is given by
\(f(x) = 1/(1+exp(h_s(x-x_s)))+1/(1+exp(h_e(-x-x_e)))-1\).

where h is a polynomial in \(x/\lambda\) with polynomial coefficients a and the subscript s refers to the start, e refers to the end.

The algorithm can also return the analytically calculated derivative to user-specified precision. n^th derivative is given by

\(f^{(n)}(x) = E^{(n)}(x-x_s)+(-1)^n E^{(n)}(-x-x_e)\)

for Enge function having n^th derivative \(E^{(n)}(x)\)

Definition at line 57 of file AsymmetricEnge.h.

Constructor & Destructor Documentation

◆ AsymmetricEnge() [1/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge ( )

Default constructor

Definition at line 5 of file AsymmetricEnge.cpp.

Referenced by clone().

◆ AsymmetricEnge() [2/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge	(	const std::vector< double >	aStart,
		double	x0Start,
		double	lambdaStart,
		const std::vector< double >	aEnd,
		double	x0End,
		double	lambdaEnd
	)

Constructor taking enge parameters

Definition at line 13 of file AsymmetricEnge.cpp.

References engeEnd_m, and engeStart_m.

◆ AsymmetricEnge() [3/3]

endfieldmodel::AsymmetricEnge::AsymmetricEnge ( const AsymmetricEnge & rhs )

private

Definition at line 9 of file AsymmetricEnge.cpp.

Member Function Documentation

◆ clone()

AsymmetricEnge * endfieldmodel::AsymmetricEnge::clone ( ) const

inlinevirtual

Inheritable copy constructor. We take a deep copy of the engeStart and engeEnd

Implements endfieldmodel::EndFieldModel.

Definition at line 154 of file AsymmetricEnge.h.

References AsymmetricEnge().

Here is the call graph for this function:

◆ function()

double endfieldmodel::AsymmetricEnge::function	(	double	x,
		int	n
	)		const

virtual

Return the value of enge at some point x

Implements endfieldmodel::EndFieldModel.

Definition at line 43 of file AsymmetricEnge.cpp.

References engeEnd_m, and engeStart_m.

◆ getCentreLength()

double endfieldmodel::AsymmetricEnge::getCentreLength ( ) const

inlinevirtual

Centre length is the average of x0End and x0Start

Implements endfieldmodel::EndFieldModel.

Definition at line 162 of file AsymmetricEnge.h.

References engeEnd_m, and engeStart_m.

◆ getEndLength()

double endfieldmodel::AsymmetricEnge::getEndLength ( ) const

inlinevirtual

End length is the average of lambdaEnd and lambdaStart

Implements endfieldmodel::EndFieldModel.

Definition at line 170 of file AsymmetricEnge.h.

References engeEnd_m, and engeStart_m.

◆ getEngeEnd()

std::shared_ptr< Enge > endfieldmodel::AsymmetricEnge::getEngeEnd ( ) const

inline

Get the enge function for the magnet exit

Definition at line 128 of file AsymmetricEnge.h.

References engeEnd_m.

◆ getEngeStart()

std::shared_ptr< Enge > endfieldmodel::AsymmetricEnge::getEngeStart ( ) const

inline

Get the enge function for the magnet entrance

Definition at line 125 of file AsymmetricEnge.h.

References engeStart_m.

◆ getStartOffset()

double endfieldmodel::AsymmetricEnge::getStartOffset ( ) const

inlinevirtual

Start offset is x0start

Implements endfieldmodel::EndFieldModel.

Definition at line 166 of file AsymmetricEnge.h.

References engeStart_m.

◆ getX0End()

double endfieldmodel::AsymmetricEnge::getX0End ( ) const

inline

Return x0End, offset of the end Enge

Definition at line 142 of file AsymmetricEnge.h.

References engeEnd_m.

◆ getX0Start()

double endfieldmodel::AsymmetricEnge::getX0Start ( ) const

inline

Return x0Start, offset of the start Enge

Definition at line 138 of file AsymmetricEnge.h.

References engeStart_m.

◆ print()

std::ostream & endfieldmodel::AsymmetricEnge::print ( std::ostream & out ) const

virtual

Print a human-readable description of the end field model

Implements endfieldmodel::EndFieldModel.

Definition at line 34 of file AsymmetricEnge.cpp.

References engeStart_m.

◆ rescale()

void endfieldmodel::AsymmetricEnge::rescale ( double scaleFactor )

virtual

Rescale the Enge to a new length scale

Implements endfieldmodel::EndFieldModel.

Definition at line 29 of file AsymmetricEnge.cpp.

References engeEnd_m, and engeStart_m.

◆ setEngeEnd()

void endfieldmodel::AsymmetricEnge::setEngeEnd ( std::shared_ptr< Enge > eEnd )

inline

Set the enge function for the magnet exit

Definition at line 134 of file AsymmetricEnge.h.

References engeEnd_m.

◆ setEngeStart()

void endfieldmodel::AsymmetricEnge::setEngeStart ( std::shared_ptr< Enge > eStart )

inline

Set the enge function for the magnet entrance

Definition at line 131 of file AsymmetricEnge.h.

References engeStart_m.

◆ setMaximumDerivative()

void endfieldmodel::AsymmetricEnge::setMaximumDerivative ( size_t n )

inlinevirtual

Setup the Enge recursion for derivatives

Implements endfieldmodel::EndFieldModel.

Definition at line 158 of file AsymmetricEnge.h.

References endfieldmodel::Enge::setEngeDiffIndices().

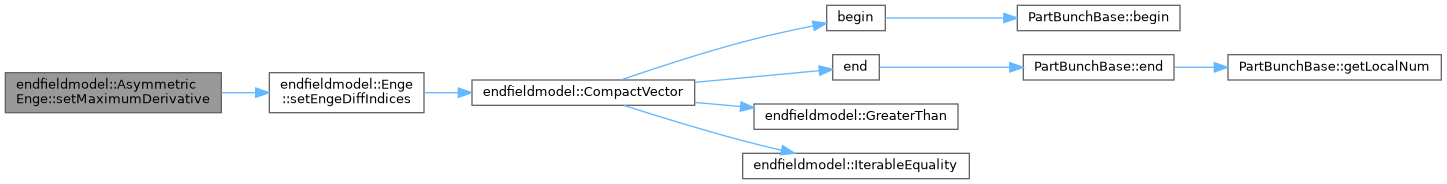

Here is the call graph for this function:

◆ setX0End()

void endfieldmodel::AsymmetricEnge::setX0End ( double x0 )

inline

Set x0End, offset of the end Enge

Definition at line 150 of file AsymmetricEnge.h.

References engeEnd_m.

◆ setX0Start()

void endfieldmodel::AsymmetricEnge::setX0Start ( double x0 )

inline

Set x0Start, offset of the start Enge

Definition at line 146 of file AsymmetricEnge.h.

References engeStart_m.

Member Data Documentation

◆ engeEnd_m

std::shared_ptr<Enge> endfieldmodel::AsymmetricEnge::engeEnd_m

private

Definition at line 122 of file AsymmetricEnge.h.

Referenced by AsymmetricEnge(), function(), getCentreLength(), getEndLength(), getEngeEnd(), getX0End(), rescale(), setEngeEnd(), and setX0End().

◆ engeStart_m

std::shared_ptr<Enge> endfieldmodel::AsymmetricEnge::engeStart_m

private

Definition at line 121 of file AsymmetricEnge.h.

Referenced by AsymmetricEnge(), function(), getCentreLength(), getEndLength(), getEngeStart(), getStartOffset(), getX0Start(), print(), rescale(), setEngeStart(), and setX0Start().

The documentation for this class was generated from the following files:

src/Classic/AbsBeamline/EndFieldModel/AsymmetricEnge.h
src/Classic/AbsBeamline/EndFieldModel/AsymmetricEnge.cpp
