#include <FFT.h>

Inheritance diagram for FFT< RCTransform, Dim, T >:

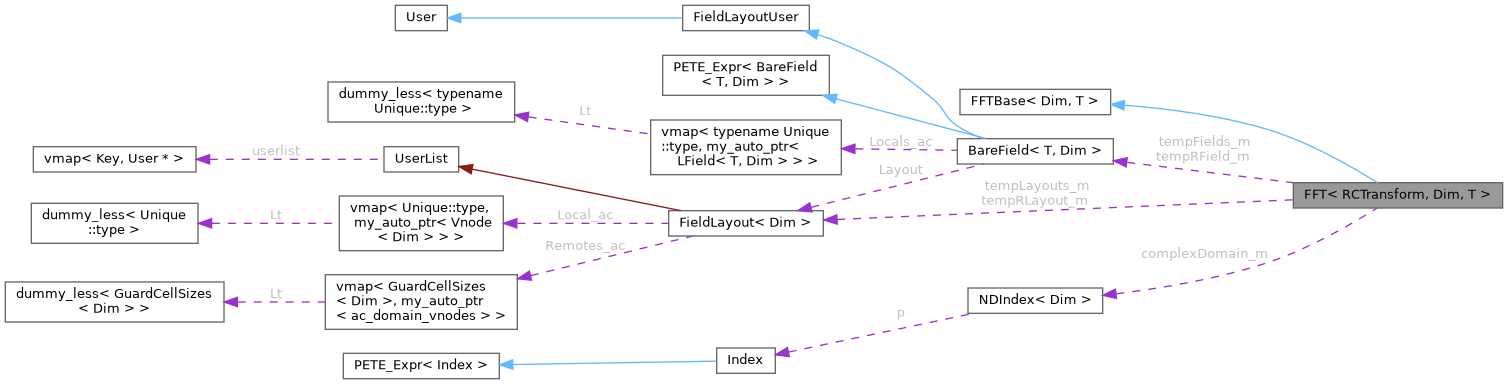

Collaboration diagram for FFT< RCTransform, Dim, T >:

[legend]

Public Types
typedef FieldLayout< Dim >	Layout_t

typedef BareField< T, Dim >	RealField_t

typedef LField< T, Dim >	RealLField_t

typedef std::complex< T >	Complex_t

typedef BareField< Complex_t, Dim >	ComplexField_t

typedef LField< Complex_t, Dim >	ComplexLField_t

typedef FFTBase< Dim, T >::Domain_t	Domain_t

Public Types inherited from FFTBase< Dim, T >
enum	{ dimensions = Dim }

enum	FFT_e { ccFFT , rcFFT , sineFFT , cosineFFT }

typedef T	Precision_t

typedef NDIndex< Dim >	Domain_t

typedef FFTPACK< T >	InternalFFT_t

Public Member Functions
	FFT (const Domain_t &rdomain, const Domain_t &cdomain, const bool transformTheseDims[Dim], const bool &compressTemps=false)

	FFT (const Domain_t &rdomain, const Domain_t &cdomain, const bool &compressTemps=false, int serialAxes=1)

	~FFT (void)

void	transform (int direction, RealField_t &f, ComplexField_t &g, const bool &constInput=false)

void	transform (const char *directionName, RealField_t &f, ComplexField_t &g, const bool &constInput=false)

void	transform (int direction, ComplexField_t &f, RealField_t &g, const bool &constInput=false)

void	transform (const char *directionName, ComplexField_t &f, RealField_t &g, const bool &constInput=false)

Public Member Functions inherited from FFTBase< Dim, T >
	FFTBase ()

	FFTBase (FFT_e transform, const Domain_t &domain, const bool transformTheseDims[Dim], bool compressTemps)

	FFTBase (FFT_e transform, const Domain_t &domain, bool compressTemps)

virtual	~FFTBase (void)

void	write (std::ostream &out) const

void	setDirectionName (int direction, const char *directionName)

void	setNormFact (Precision_t nf)

int	transVnodes () const

Private Member Functions
void	setup (void)

Private Attributes
Layout_t **	tempLayouts_m

Layout_t *	tempRLayout_m

ComplexField_t **	tempFields_m

RealField_t *	tempRField_m

Domain_t	complexDomain_m

int	serialAxes_m

Additional Inherited Members
Protected Member Functions inherited from FFTBase< Dim, T >
int	getDirection (const char *directionName) const
	translate direction name string into dimension number

bool	transformDim (unsigned d) const
	query whether this dimension is to be transformed

unsigned	numTransformDims (void) const
	query number of transform dimensions

unsigned	activeDimension (unsigned d) const
	get dimension number from list of transformed dimensions

InternalFFT_t &	getEngine (void)
	access the internal FFT Engine

Precision_t &	getNormFact (void)
	get the FFT normalization factor

const Domain_t &	getDomain (void) const
	get our domain

bool	checkDomain (const Domain_t &dom1, const Domain_t &dom2) const
	compare indexes of two domains

bool	compressTemps (void) const
	do we compress temps?

Static Protected Attributes inherited from FFTBase< Dim, T >
static GuardCellSizes< Dim >	nullGC = GuardCellSizes<Dim>()
	null GuardCellSizes object for checking BareField arguments to transform

Detailed Description

template<size_t Dim, class T>
class FFT< RCTransform, Dim, T >

real-to-complex FFT class

Definition at line 395 of file FFT.h.

Member Typedef Documentation

◆ Complex_t

template<size_t Dim, class T >

typedef std::complex<T> FFT< RCTransform, Dim, T >::Complex_t

Definition at line 405 of file FFT.h.

◆ ComplexField_t

template<size_t Dim, class T >

typedef BareField<Complex_t,Dim> FFT< RCTransform, Dim, T >::ComplexField_t

Definition at line 406 of file FFT.h.

◆ ComplexLField_t

template<size_t Dim, class T >

typedef LField<Complex_t,Dim> FFT< RCTransform, Dim, T >::ComplexLField_t

Definition at line 407 of file FFT.h.

◆ Domain_t

template<size_t Dim, class T >

typedef FFTBase<Dim,T>::Domain_t FFT< RCTransform, Dim, T >::Domain_t

Definition at line 408 of file FFT.h.

◆ Layout_t

template<size_t Dim, class T >

typedef FieldLayout<Dim> FFT< RCTransform, Dim, T >::Layout_t

Definition at line 402 of file FFT.h.

◆ RealField_t

template<size_t Dim, class T >

typedef BareField<T,Dim> FFT< RCTransform, Dim, T >::RealField_t

Definition at line 403 of file FFT.h.

◆ RealLField_t

template<size_t Dim, class T >

typedef LField<T,Dim> FFT< RCTransform, Dim, T >::RealLField_t

Definition at line 404 of file FFT.h.

Constructor & Destructor Documentation

◆ FFT() [1/2]

template<size_t Dim, class T >

FFT< RCTransform, Dim, T >::FFT	(	const Domain_t &	rdomain,
		const Domain_t &	cdomain,
		const bool	transformTheseDims[Dim],
		const bool &	compressTemps = `false`
	)

Create a new FFT object with the given domains for input/output Fields Specify which dimensions to transform along. Optional argument compress indicates whether or not to compress temporary Fields in between uses.

◆ FFT() [2/2]

template<size_t Dim, class T >

FFT< RCTransform, Dim, T >::FFT	(	const Domain_t &	rdomain,
		const Domain_t &	cdomain,
		const bool &	compressTemps = `false`,
		int	serialAxes = `1`
	)

Same as above, but transform all dims:

◆ ~FFT()

template<size_t Dim, class T >

FFT< RCTransform, Dim, T >::~FFT ( void )

Definition at line 922 of file FFT.hpp.

Member Function Documentation

◆ setup()

template<size_t Dim, class T >

void FFT< RCTransform, Dim, T >::setup ( void )

private

complex-to-real FFT on GPU: pass pointer to GPU memory where complex field is stored, do the inverse FFT and transfer real field back to host memory setup performs all the initializations necessary after the transform directions have been specified.

Definition at line 785 of file FFT.hpp.

References Dim, PARALLEL, PAssert_GT, PAssert_LT, PInsist, and SERIAL.

◆ transform() [1/4]

template<size_t Dim, class T >

void FFT< RCTransform, Dim, T >::transform	(	const char *	directionName,
		ComplexField_t &	f,
		RealField_t &	g,
		const bool &	constInput = `false`
	)

◆ transform() [2/4]

template<size_t Dim, class T >

void FFT< RCTransform, Dim, T >::transform	(	const char *	directionName,
		RealField_t &	f,
		ComplexField_t &	g,
		const bool &	constInput = `false`
	)

◆ transform() [3/4]

template<size_t Dim, class T >

void FFT< RCTransform, Dim, T >::transform	(	int	direction,
		ComplexField_t &	f,
		RealField_t &	g,
		const bool &	constInput = `false`
	)

real-to-complex FFT on GPU: transfer the real field to GPU execute FFT return the pointer to memory on GPU where complex results are stored complex-to-real FFT Same as above, but with input and output field types reversed.

◆ transform() [4/4]

template<size_t Dim, class T >

void FFT< RCTransform, Dim, T >::transform	(	int	direction,
		RealField_t &	f,
		ComplexField_t &	g,
		const bool &	constInput = `false`
	)

real-to-complex FFT: specify +1 or -1 to indicate forward or inverse transform, or specify the user-defined name string for the direction. Supply a second BareField to store the output. optional argument constInput indicates whether or not to treat the input Field argument f as const. If not, we can use it as a temporary in order to avoid an additional data transpose.

Member Data Documentation

◆ complexDomain_m

template<size_t Dim, class T >

Domain_t FFT< RCTransform, Dim, T >::complexDomain_m

private

domain of the resulting complex fields const Domain_t& complexDomain_m;

Definition at line 490 of file FFT.h.

◆ serialAxes_m

template<size_t Dim, class T >

int FFT< RCTransform, Dim, T >::serialAxes_m

private

number of axes to make serial

Definition at line 495 of file FFT.h.

◆ tempFields_m

template<size_t Dim, class T >

ComplexField_t** FFT< RCTransform, Dim, T >::tempFields_m

private

The array of temporary fields, one for each transform direction These use the corresponding tempLayouts.

Definition at line 479 of file FFT.h.

◆ tempLayouts_m

template<size_t Dim, class T >

Layout_t** FFT< RCTransform, Dim, T >::tempLayouts_m

private

How the temporary fields are laid out; these are computed from the input Field's domain. This will be allocated as an array of FieldLayouts with nTransformDims elements. Each is SERIAL along the zeroth dimension and the axes are permuted so that the transform direction is first

Definition at line 469 of file FFT.h.

◆ tempRField_m

template<size_t Dim, class T >

RealField_t* FFT< RCTransform, Dim, T >::tempRField_m

private

We need one real internal Field in this case.

Definition at line 484 of file FFT.h.

◆ tempRLayout_m

template<size_t Dim, class T >

Layout_t* FFT< RCTransform, Dim, T >::tempRLayout_m

private

extra layout for the one real Field needed

Definition at line 474 of file FFT.h.

The documentation for this class was generated from the following files:

ippl/src/FFT/FFT.h
ippl/src/FFT/FFT.hpp
