#include <MultipoleT.h>

Inheritance diagram for MultipoleT:

[legend]

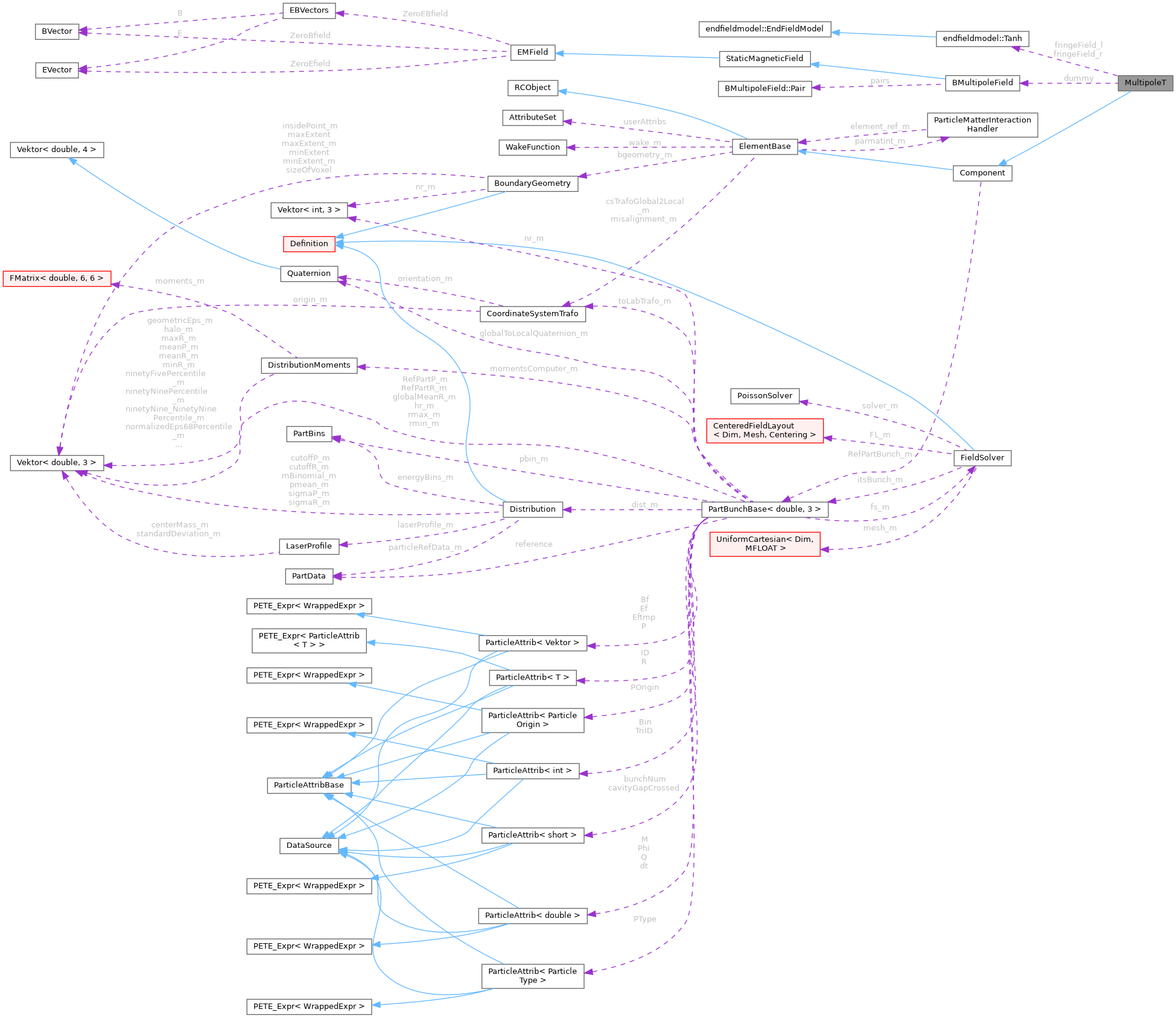

Collaboration diagram for MultipoleT:

[legend]

Public Member Functions
	MultipoleT (const std::string &name)

	MultipoleT (const MultipoleT &right)

	~MultipoleT () override=default

ElementBase *	clone () const override

void	accept (BeamlineVisitor &visitor) const override

BGeometryBase &	getGeometry () override

const BGeometryBase &	getGeometry () const override

EMField &	getField () override

const EMField &	getField () const override

bool	apply (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B) override

bool	apply (const size_t &i, const double &t, Vector_t &E, Vector_t &B) override

void	initialise (PartBunchBase< double, 3 > *bunch, double &startField, double &endField) override

void	finalise () override

bool	bends () const override

size_t	getMaxFOrder () const

size_t	getMaxXOrder () const

void	setMaxOrder (size_t orderZ, size_t orderX)

std::size_t	getTransMaxOrder () const

void	setTransProfile (const std::vector< double > &profile)

const std::vector< double > &	getTransProfile () const

void	setFringeField (const double &s0, const double &lambda_left, const double &lambda_right)

std::tuple< double, double, double >	getFringeField () const

void	setEntranceAngle (double entranceAngle)

void	setEntryOffset (double offset)

double	getEntryOffset () const

bool	getVariableRadius () const

void	setBendAngle (double angle, bool variableRadius)

double	getBendAngle () const

double	getEntranceAngle () const

void	setElementLength (double length) override

double	getLength () const

void	setAperture (const double &vertAp, const double &horizAp)

std::tuple< double, double >	getAperture ()

void	setRotation (double rot)

double	getRotation () const

double	getBoundingBoxLength () const

void	setBoundingBoxLength (double boundingBoxLength)

void	getDimensions (double &, double &) const override

double	getFringeDeriv (const std::size_t &n, const double &s)

double	getFnDerivX (const std::size_t &n, const double &x, const double &s)

double	getFnDerivS (const std::size_t &n, const double &x, const double &s)

double	getTransDeriv (const std::size_t &n, const double &x) const

Vector_t	toMagnetCoords (const Vector_t &R)

Vector_t	getField (const Vector_t &magnetCoords)

Vector_t	localCartesianToOpalCartesian (const Vector_t &r)

double	localCartesianRotation ()

void	setScalingName (const std::string &name)

void	setScalingModel (const std::shared_ptr< AbstractTimeDependence > &td)

std::string	getScalingName () const

void	initialiseTimeDepencencies () const

Public Member Functions inherited from Component
	Component (const std::string &name)
	Constructor with given name.

	Component ()

	Component (const Component &right)

virtual	~Component ()

EVector	Efield (const Point3D &P) const
	Return the field in a point.

BVector	Bfield (const Point3D &P) const
	Return the field in a point.

EVector	Efield (const Point3D &P, double t) const
	Return the field in a point.

BVector	Bfield (const Point3D &P, double t) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P) const
	Return the field in a point.

EBVectors	EBfield (const Point3D &P, double t) const
	Return the field in a point.

virtual bool	applyToReferenceParticle (const Vector_t &R, const Vector_t &P, const double &t, Vector_t &E, Vector_t &B)

virtual bool	getPotential (const Vector_t &, const double &, Vector_t &, double &)

virtual double	getDesignEnergy () const

virtual void	setDesignEnergy (const double &energy, bool changeable=true)

virtual void	goOnline (const double &kineticEnergy)

virtual void	goOffline ()

virtual bool	Online ()

virtual ElementType	getType () const override
	Get element type std::string.

virtual const ElementBase &	getDesign () const
	Return design element.

virtual void	trackBunch (PartBunchBase< double, 3 > *bunch, const PartData &, bool revBeam, bool revTrack) const
	Track particle bunch.

virtual void	trackMap (FVps< double, 6 > &map, const PartData &, bool revBeam, bool revTrack) const
	Track a map.

void	setExitFaceSlope (const double &)

Public Member Functions inherited from ElementBase
	ElementBase (const std::string &name)
	Constructor with given name.

	ElementBase ()

	ElementBase (const ElementBase &)

virtual	~ElementBase ()

virtual const std::string &	getName () const
	Get element name.

virtual void	setName (const std::string &name)
	Set element name.

std::string	getTypeString () const

virtual double	getArcLength () const
	Get arc length.

virtual double	getElementLength () const
	Get design length.

virtual void	getElementDimensions (double &begin, double &end) const

virtual double	getOrigin () const
	Get origin position.

virtual double	getEntrance () const
	Get entrance position.

virtual double	getExit () const
	Get exit position.

virtual Euclid3D	getTransform (double fromS, double toS) const
	Get transform.

virtual Euclid3D	getTransform (double s) const
	Get transform.

virtual Euclid3D	getTotalTransform () const
	Get transform.

virtual Euclid3D	getEntranceFrame () const
	Get transform.

virtual Euclid3D	getExitFrame () const
	Get transform.

virtual Euclid3D	getEntrancePatch () const
	Get patch.

virtual Euclid3D	getExitPatch () const
	Get patch.

virtual double	getAttribute (const std::string &aKey) const
	Get attribute value.

virtual bool	hasAttribute (const std::string &aKey) const
	Test for existence of an attribute.

virtual void	removeAttribute (const std::string &aKey)
	Remove an existing attribute.

virtual void	setAttribute (const std::string &aKey, double val)
	Set value of an attribute.

virtual Channel *	getChannel (const std::string &aKey, bool create=false)
	Construct a read/write channel.

virtual const ConstChannel *	getConstChannel (const std::string &aKey) const
	Construct a read-only channel.

virtual ElementBase *	copyStructure ()
	Make a structural copy.

bool	isSharable () const
	Test if the element can be shared.

virtual void	makeSharable ()
	Set sharable flag.

bool	update (const AttributeSet &)
	Update element.

virtual void	setBoundaryGeometry (BoundaryGeometry *geo)

virtual BoundaryGeometry *	getBoundaryGeometry () const
	return the attached boundary geometrt object if there is any

virtual bool	hasBoundaryGeometry () const

virtual void	setWake (WakeFunction *wf)
	attach a wake field to the element

virtual WakeFunction *	getWake () const
	return the attached wake object if there is any

virtual bool	hasWake () const

virtual void	setParticleMatterInteraction (ParticleMatterInteractionHandler *spys)

virtual ParticleMatterInteractionHandler *	getParticleMatterInteraction () const

virtual bool	hasParticleMatterInteraction () const

void	setCSTrafoGlobal2Local (const CoordinateSystemTrafo &ori)

CoordinateSystemTrafo	getCSTrafoGlobal2Local () const

void	releasePosition ()

void	fixPosition ()

bool	isPositioned () const

virtual CoordinateSystemTrafo	getEdgeToBegin () const

virtual CoordinateSystemTrafo	getEdgeToEnd () const

void	setAperture (const ApertureType &type, const std::vector< double > &args)

std::pair< ApertureType, std::vector< double > >	getAperture () const

virtual bool	isInside (const Vector_t &r) const

void	setMisalignment (const CoordinateSystemTrafo &cst)

void	getMisalignment (double &x, double &y, double &s) const

CoordinateSystemTrafo	getMisalignment () const

void	setActionRange (const std::queue< std::pair< double, double > > &range)

void	setCurrentSCoordinate (double s)

void	setRotationAboutZ (double rotation)
	Set rotation about z axis in bend frame.

double	getRotationAboutZ () const

virtual BoundingBox	getBoundingBoxInLabCoords () const

virtual int	getRequiredNumberOfTimeSteps () const

void	setOutputFN (std::string fn)
	Set output filename.

std::string	getOutputFN () const
	Get output filename.

void	setFlagDeleteOnTransverseExit (bool=true)

bool	getFlagDeleteOnTransverseExit () const

void	setElementPosition (double elemedge)
	Access to ELEMEDGE attribute.

double	getElementPosition () const

bool	isElementPositionSet () const

Public Member Functions inherited from RCObject
int	addReference () const
	Increment reference count.

int	removeReference () const
	Decrement the reference count.

bool	isShared () const
	Test for sharing.

Protected Member Functions
Vector_t	rotateFrame (const Vector_t &R) const

bool	insideAperture (const Vector_t &R) const

bool	insideBoundingBox (const Vector_t &R) const

void	chooseImplementation ()

Protected Member Functions inherited from ElementBase
bool	isInsideTransverse (const Vector_t &r) const

Protected Member Functions inherited from RCObject
	RCObject ()
	Default constructor.

	RCObject (const RCObject &)
	Copy constructor.

virtual	~RCObject ()=0

RCObject &	operator= (const RCObject &right)

Protected Attributes
endfieldmodel::Tanh	fringeField_l {endfieldmodel::Tanh()}

endfieldmodel::Tanh	fringeField_r {endfieldmodel::Tanh()}

std::size_t	maxFOrder_m {3}

std::size_t	maxXOrder_m {20}

std::vector< double >	transProfile_m {0.0}

size_t	transMaxOrder_m {1}

double	length_m {1.0}

double	entranceAngle_m {0.0}

double	rotation_m {0.0}

double	bendAngle_m {0.0}

bool	variableRadius_m {false}

double	boundingBoxLength_m {0.0}

double	entryOffset_m {0.0}

double	verticalApert_m {0.5}

double	horizontalApert_m {0.5}

BMultipoleField	dummy

std::string	scalingName_m

std::shared_ptr< AbstractTimeDependence >	scalingTD_m

std::unique_ptr< MultipoleTBase >	implementation_ {}

Protected Attributes inherited from Component
double	exit_face_slope_m

PartBunchBase< double, 3 > *	RefPartBunch_m

bool	online_m

Protected Attributes inherited from ElementBase
bool	shareFlag

CoordinateSystemTrafo	csTrafoGlobal2Local_m

CoordinateSystemTrafo	misalignment_m

std::pair< ApertureType, std::vector< double > >	aperture_m

double	elementEdge_m

double	rotationZAxis_m

Additional Inherited Members
Static Public Member Functions inherited from ElementBase
static std::string	getTypeString (ElementType type)

Static Protected Attributes inherited from Component
static const std::vector< double >	defaultAperture_m

Detailed Description

MultipoleT implements a straight or curved combined
function magnet (up to arbitrary multipole component) with fringe fields.

Class category: AbsBeamline
$Author: Titus Dascalu, Martin Duy Tat, Chris Rogers

The field is obtained from the scalar potential

\[ V = f_0(x,s) z + f_1 (x,s) \frac{z^3}{3!} + f_2 (x,s) \frac{z^5}{5!} + ... \]

(x,z,s) -> Frenet-Serret local coordinates along the magnet
z -> vertical component
assume mid-plane symmetry
set field on mid-plane -> $ B_z = f_0(x,s) = T(x) \cdot S(s) $
T(x) -> transverse profile; this is a polynomial describing the field expansion on the mid-plane inside the magnet (not in the fringe field); 1st term is the dipole strength, 2nd term is the quadrupole gradient * x, etc.
-> when setting the magnet, one gives the multipole coefficients of this polynomial (i.e. dipole strength,
quadrupole gradient, etc.)

----------— example --------------------------------------------—
Setting a combined function magnet with dipole, quadrupole and sextupole components:
$ T(x) = B_0 + B_1 \cdot x + B_2 \cdot x^2 $
user gives $ B_0, B_1, B_2 $
----------— example end ----------------------------------------—

S(s) -> fringe field
recursion -> $ f_n (x,s) = (-1)^n \cdot \sum_{i=0}^{n} C_n^i \cdot T^{(2i)} \cdot S^{(2n-2i)} $
for curved magnets the above recursion is more complicated
$ C_n^i $ -> binomial coeff; $ T^{(n)} $ -> n-th derivative

Definition at line 88 of file MultipoleT.h.

Constructor & Destructor Documentation

◆ MultipoleT() [1/2]

MultipoleT::MultipoleT ( const std::string & name )

explicit

Constructor

Parameters

name	-> User-defined name

Definition at line 42 of file MultipoleT.cpp.

References chooseImplementation().

Here is the call graph for this function:

◆ MultipoleT() [2/2]

MultipoleT::MultipoleT ( const MultipoleT & right )

Copy constructor

Definition at line 47 of file MultipoleT.cpp.

References chooseImplementation(), and Component::RefPartBunch_m.

Here is the call graph for this function:

◆ ~MultipoleT()

MultipoleT::~MultipoleT ( )

overridedefault

Destructor

Member Function Documentation

◆ accept()

void MultipoleT::accept ( BeamlineVisitor & visitor ) const

overridevirtual

Accept a beamline visitor

Implements ElementBase.

Definition at line 73 of file MultipoleT.cpp.

References initialiseTimeDepencencies(), and BeamlineVisitor::visitMultipoleT().

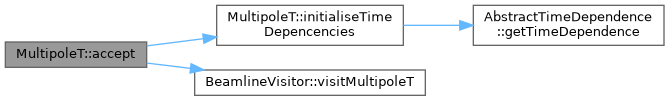

Here is the call graph for this function:

◆ apply() [1/2]

bool MultipoleT::apply	(	const size_t &	i,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

overridevirtual

Calculate the field at the position of the ith particle

Parameters

i	-> Index of the particle event; field is calculated at this position If particle is outside field map true is returned, otherwise false is returned
t	-> Time at which the field is to be calculated
E	-> Calculated electric field - always 0 (no E-field)
B	-> Calculated magnetic field

Reimplemented from Component.

Definition at line 228 of file MultipoleT.cpp.

References apply(), PartBunchBase< T, Dim >::P, PartBunchBase< T, Dim >::R, and Component::RefPartBunch_m.

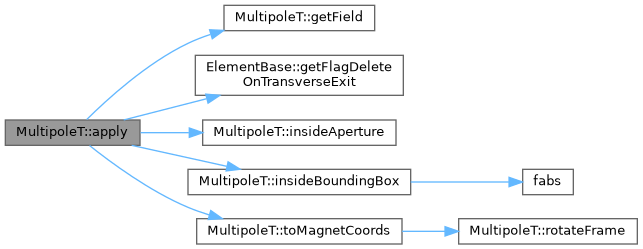

Here is the call graph for this function:

◆ apply() [2/2]

bool MultipoleT::apply	(	const Vector_t &	R,
		const Vector_t &	P,
		const double &	t,
		Vector_t &	E,
		Vector_t &	B
	)

overridevirtual

Calculate the field at some arbitrary position
If particle is outside field map true is returned, otherwise false is returned

Parameters

R	-> Position in the lab coordinate system of the multipole
P	-> Not used
t	-> Time at which the field is to be calculated
E	-> Calculated electric field - always 0 (no E-field)
B	-> Calculated magnetic field

Reimplemented from Component.

Definition at line 129 of file MultipoleT.cpp.

References getField(), ElementBase::getFlagDeleteOnTransverseExit(), insideAperture(), insideBoundingBox(), scalingTD_m, and toMagnetCoords().

Referenced by apply().

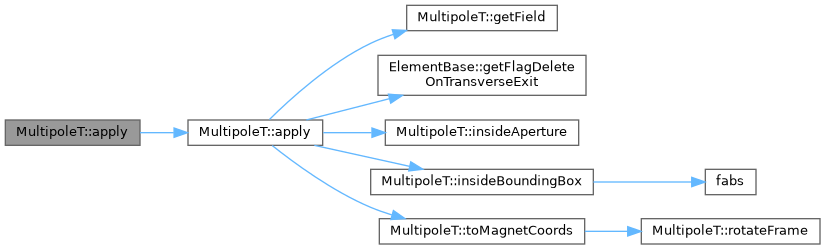

Here is the call graph for this function:

◆ bends()

bool MultipoleT::bends ( ) const

overridevirtual

Return true if dipole component not zero

Implements Component.

Definition at line 293 of file MultipoleT.cpp.

References bendAngle_m, and transProfile_m.

◆ chooseImplementation()

void MultipoleT::chooseImplementation ( )

protected

Definition at line 247 of file MultipoleT.cpp.

References bendAngle_m, implementation_, and variableRadius_m.

Referenced by MultipoleT(), MultipoleT(), and setBendAngle().

◆ clone()

ElementBase * MultipoleT::clone ( ) const

overridevirtual

Inheritable copy constructor

Implements ElementBase.

Definition at line 69 of file MultipoleT.cpp.

Referenced by ParallelCyclotronTracker::visitMultipoleT().

◆ finalise()

void MultipoleT::finalise ( )

overridevirtual

Finalise the MultipoleT - sets bunch to nullptr

Implements Component.

Definition at line 224 of file MultipoleT.cpp.

References Component::RefPartBunch_m.

◆ getAperture()

std::tuple< double, double > MultipoleT::getAperture ( )

inline

Get the aperture dimensions

Returns: {verticalApert, horizontalApert}

Definition at line 206 of file MultipoleT.h.

References horizontalApert_m, and verticalApert_m.

◆ getBendAngle()

double MultipoleT::getBendAngle ( ) const

inline

Get the bending angle of the magnet

Definition at line 187 of file MultipoleT.h.

References bendAngle_m.

◆ getBoundingBoxLength()

double MultipoleT::getBoundingBoxLength ( ) const

inline

Get the bounding box size

Definition at line 215 of file MultipoleT.h.

References boundingBoxLength_m.

◆ getDimensions()

void MultipoleT::getDimensions	(	double &	,
		double &
	)		const

inlineoverridevirtual

Not implemented

Implements Component.

Definition at line 221 of file MultipoleT.h.

◆ getEntranceAngle()

double MultipoleT::getEntranceAngle ( ) const

inline

Get the entrance angle

Definition at line 189 of file MultipoleT.h.

References entranceAngle_m.

◆ getEntryOffset()

double MultipoleT::getEntryOffset ( ) const

inline

Get the offset of the entry point from the standard position

Definition at line 181 of file MultipoleT.h.

References entryOffset_m.

Referenced by MultipoleTCurvedVarRadius::initialise().

◆ getField() [1/3]

const EMField & MultipoleT::getField ( ) const

inlineoverridevirtual

Return a dummy field value

Implements Component.

Definition at line 109 of file MultipoleT.h.

References dummy.

◆ getField() [2/3]

EMField & MultipoleT::getField ( )

inlineoverridevirtual

Return a dummy field value

Implements Component.

Definition at line 107 of file MultipoleT.h.

References dummy.

Referenced by apply().

◆ getField() [3/3]

Vector_t MultipoleT::getField ( const Vector_t & magnetCoords )

Calculate B-field in the local Frenet-Serret frame

Transform B-field from local to lab coordinates

Definition at line 117 of file MultipoleT.cpp.

References implementation_.

◆ getFnDerivS()

double MultipoleT::getFnDerivS	(	const std::size_t &	n,
		const double &	x,
		const double &	s
	)

Calculate partial derivative of fn wrt s using a 5-point finite difference formula Error of order stepSize^4

Parameters

n	-> nth derivative
x	-> Coordinate x
s	-> Coordinate s

Definition at line 210 of file MultipoleT.cpp.

References getFringeDeriv(), getTransDeriv(), and implementation_.

Referenced by MultipoleTBase::getBs().

Here is the call graph for this function:

◆ getFnDerivX()

double MultipoleT::getFnDerivX	(	const std::size_t &	n,
		const double &	x,
		const double &	s
	)

Calculate partial derivative of fn wrt x using a 5-point finite difference formula Error of order stepSize^4

Parameters

n	-> nth derivative
x	-> Coordinate x
s	-> Coordinate s

Definition at line 196 of file MultipoleT.cpp.

References getFringeDeriv(), getTransDeriv(), and implementation_.

Referenced by MultipoleTBase::getBx().

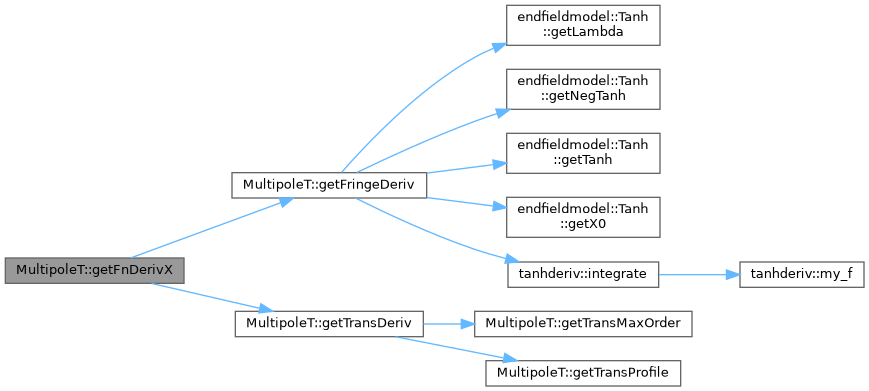

Here is the call graph for this function:

◆ getFringeDeriv()

double MultipoleT::getFringeDeriv	(	const std::size_t &	n,
		const double &	s
	)

Returns the value of the fringe field n-th derivative at s

Parameters

n	-> nth derivative
s	-> Coordinate s

Definition at line 159 of file MultipoleT.cpp.

References fringeField_l, fringeField_r, endfieldmodel::Tanh::getLambda(), endfieldmodel::Tanh::getNegTanh(), endfieldmodel::Tanh::getTanh(), endfieldmodel::Tanh::getX0(), and tanhderiv::integrate().

Referenced by MultipoleTStraight::getBs(), MultipoleTStraight::getBx(), MultipoleTCurvedConstRadius::getFn(), MultipoleTCurvedVarRadius::getFn(), MultipoleTStraight::getFn(), getFnDerivS(), getFnDerivX(), and MultipoleTCurvedVarRadius::getScaleFactor().

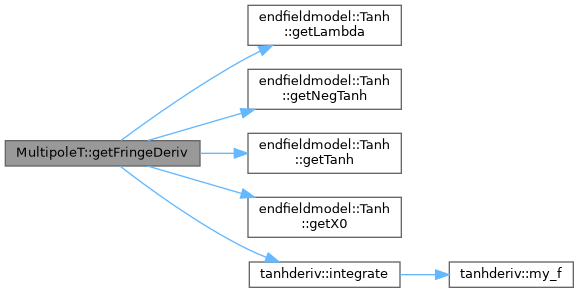

Here is the call graph for this function:

◆ getFringeField()

std::tuple< double, double, double > MultipoleT::getFringeField ( ) const

Get the fringe field model

Returns: {s0, leftFringe, rightFringe}

Definition at line 155 of file MultipoleT.cpp.

References fringeField_l, fringeField_r, endfieldmodel::Tanh::getLambda(), and endfieldmodel::Tanh::getX0().

Referenced by MultipoleTCurvedVarRadius::initialise(), MultipoleTCurvedVarRadius::localCartesianToCurvilinear(), and MultipoleTCurvedVarRadius::transformBField().

Here is the call graph for this function:

◆ getGeometry() [1/2]

const BGeometryBase & MultipoleT::getGeometry ( ) const

overridevirtual

Return the cell geometry

Implements ElementBase.

Definition at line 319 of file MultipoleT.cpp.

References implementation_.

◆ getGeometry() [2/2]

BGeometryBase & MultipoleT::getGeometry ( )

overridevirtual

Return the cell geometry

Implements ElementBase.

Definition at line 315 of file MultipoleT.cpp.

References implementation_.

◆ getLength()

double MultipoleT::getLength ( ) const

inline

Get the length of the magnet

Definition at line 196 of file MultipoleT.h.

References length_m.

Referenced by MultipoleTCurvedConstRadius::getFn(), MultipoleTCurvedVarRadius::getFn(), MultipoleTCurvedConstRadius::getScaleFactor(), MultipoleTCurvedVarRadius::getScaleFactor(), MultipoleTCurvedConstRadius::initialise(), MultipoleTCurvedVarRadius::initialise(), MultipoleTStraight::initialise(), MultipoleTCurvedVarRadius::localCartesianToCurvilinear(), MultipoleTCurvedConstRadius::localCartesianToOpalCartesian(), MultipoleTStraight::localCartesianToOpalCartesian(), MultipoleTCurvedConstRadius::transformBField(), MultipoleTCurvedVarRadius::transformBField(), MultipoleTCurvedConstRadius::transformCoords(), and MultipoleTStraight::transformCoords().

◆ getMaxFOrder()

size_t MultipoleT::getMaxFOrder ( ) const

inline

Get the number of terms used in calculation of field components

Definition at line 143 of file MultipoleT.h.

References maxFOrder_m.

Referenced by MultipoleTBase::getBs(), MultipoleTStraight::getBs(), MultipoleTBase::getBx(), MultipoleTStraight::getBx(), MultipoleTBase::getBz(), MultipoleTCurvedConstRadius::initialise(), and MultipoleTCurvedVarRadius::initialise().

◆ getMaxXOrder()

size_t MultipoleT::getMaxXOrder ( ) const

inline

Definition at line 144 of file MultipoleT.h.

References maxXOrder_m.

Referenced by MultipoleTCurvedConstRadius::initialise(), and MultipoleTCurvedVarRadius::initialise().

◆ getRotation()

double MultipoleT::getRotation ( ) const

inline

Get the angle of rotation of the magnet around its axis

Definition at line 213 of file MultipoleT.h.

References rotation_m.

◆ getScalingName()

std::string MultipoleT::getScalingName ( ) const

inline

Definition at line 262 of file MultipoleT.h.

References scalingName_m.

◆ getTransDeriv()

double MultipoleT::getTransDeriv	(	const std::size_t &	n,
		const double &	x
	)		const

Returns the value of the transverse field n-th derivative at x
Transverse field is a polynomial in x, differentiation follows usual polynomial rules of differentiation

Parameters

n	-> nth derivative
x	-> Coordinate x

Definition at line 172 of file MultipoleT.cpp.

References getTransMaxOrder(), getTransProfile(), and transMaxOrder_m.

Referenced by MultipoleTStraight::getBs(), MultipoleTStraight::getBx(), MultipoleTCurvedConstRadius::getFn(), MultipoleTCurvedVarRadius::getFn(), MultipoleTStraight::getFn(), getFnDerivS(), and getFnDerivX().

Here is the call graph for this function:

◆ getTransMaxOrder()

std::size_t MultipoleT::getTransMaxOrder ( ) const

inline

Get the maximum order in the given transverse profile

Definition at line 151 of file MultipoleT.h.

References transMaxOrder_m.

Referenced by getTransDeriv(), MultipoleTCurvedConstRadius::setMaxOrder(), and MultipoleTCurvedVarRadius::setMaxOrder().

◆ getTransProfile()

const std::vector< double > & MultipoleT::getTransProfile ( ) const

inline

Get all terms of transverse profile

Definition at line 157 of file MultipoleT.h.

References transProfile_m.

Referenced by getTransDeriv().

◆ getVariableRadius()

bool MultipoleT::getVariableRadius ( ) const

inline

Get the variable radius of the magnet

Definition at line 183 of file MultipoleT.h.

References variableRadius_m.

◆ initialise()

void MultipoleT::initialise	(	PartBunchBase< double, 3 > *	bunch,
		double &	startField,
		double &	endField
	)

overridevirtual

Initialise the MultipoleT

Parameters

bunch	-> Bunch the global bunch object
startField	-> Not used
endField	-> Not used

Implements Component.

Definition at line 297 of file MultipoleT.cpp.

References implementation_, and Component::RefPartBunch_m.

◆ initialiseTimeDepencencies()

void MultipoleT::initialiseTimeDepencencies ( ) const

Definition at line 308 of file MultipoleT.cpp.

References AbstractTimeDependence::getTimeDependence(), scalingName_m, and scalingTD_m.

Referenced by accept(), and PyOpal::PyOpalObjectNS::PyOpalObject< C >::doSetup().

Here is the call graph for this function:

◆ insideAperture()

bool MultipoleT::insideAperture ( const Vector_t & R ) const

protected

Definition at line 98 of file MultipoleT.cpp.

References horizontalApert_m, and verticalApert_m.

Referenced by apply().

◆ insideBoundingBox()

bool MultipoleT::insideBoundingBox ( const Vector_t & R ) const

protected

Definition at line 103 of file MultipoleT.cpp.

References boundingBoxLength_m, and fabs().

Referenced by apply().

Here is the call graph for this function:

◆ localCartesianRotation()

double MultipoleT::localCartesianRotation ( )

Definition at line 327 of file MultipoleT.cpp.

References implementation_.

◆ localCartesianToOpalCartesian()

Vector_t MultipoleT::localCartesianToOpalCartesian ( const Vector_t & r )

Definition at line 323 of file MultipoleT.cpp.

References implementation_.

◆ rotateFrame()

Vector_t MultipoleT::rotateFrame ( const Vector_t & R ) const

protected

Rotate the frame to account for the rotation and entry angles.

Parameters

R	-> coordinate to rotate

Returns: -> rotated coordinate

Apply two 2D rotation matrices to coordinate vector Rotate around central axis => skew fields Rotate azimuthally => entrance angle

Definition at line 78 of file MultipoleT.cpp.

References entranceAngle_m, and rotation_m.

Referenced by toMagnetCoords().

◆ setAperture()

void MultipoleT::setAperture	(	const double &	vertAp,
		const double &	horizAp
	)

Set the aperture dimensions
This element only supports a rectangular aperture

Parameters

vertAp	-> Vertical aperture length
horizAp	-> Horisontal aperture length

Definition at line 258 of file MultipoleT.cpp.

References horizontalApert_m, and verticalApert_m.

◆ setBendAngle()

void MultipoleT::setBendAngle	(	double	angle,
		bool	variableRadius
	)

Set the bending angle of the magnet

Definition at line 240 of file MultipoleT.cpp.

References bendAngle_m, chooseImplementation(), and variableRadius_m.

Here is the call graph for this function:

◆ setBoundingBoxLength()

void MultipoleT::setBoundingBoxLength ( double boundingBoxLength )

Set the bounding box size. This controls the region for

Parameters

boundingBoxLength -> Distance between centre and entrance

Definition at line 263 of file MultipoleT.cpp.

References boundingBoxLength_m.

◆ setElementLength()

void MultipoleT::setElementLength ( double length )

overridevirtual

Set the length of the magnet If straight-> Actual length If curved -> Arc length

Reimplemented from ElementBase.

Definition at line 232 of file MultipoleT.cpp.

References implementation_, length_m, and ElementBase::setElementLength().

Referenced by OpalMultipoleT::update().

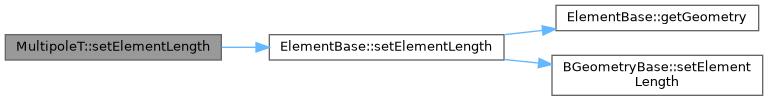

Here is the call graph for this function:

◆ setEntranceAngle()

void MultipoleT::setEntranceAngle ( double entranceAngle )

Set the entrance angle

Parameters

entranceAngle -> Entrance angle

Definition at line 285 of file MultipoleT.cpp.

References entranceAngle_m.

◆ setEntryOffset()

void MultipoleT::setEntryOffset ( double offset )

Set the offset of the entry point from the standard position

Parameters

offset positive for further away from the center

Definition at line 289 of file MultipoleT.cpp.

References entryOffset_m.

◆ setFringeField()

void MultipoleT::setFringeField	(	const double &	s0,
		const double &	lambda_left,
		const double &	lambda_right
	)

Set fringe field model
Tanh model used here

\[ 1/2 * \left [tanh \left( \frac{s + s_0}{\lambda_{left}} \right) - tanh \left( \frac{s - s_0}{\lambda_{right}} \right) \right] \]

Parameters

s0	-> Centre field length and
lambda_left	-> Left end field length
lambda_right	-> Right end field length

Definition at line 146 of file MultipoleT.cpp.

References fringeField_l, fringeField_r, implementation_, maxFOrder_m, endfieldmodel::Tanh::setLambda(), endfieldmodel::Tanh::setTanhDiffIndices(), and endfieldmodel::Tanh::setX0().

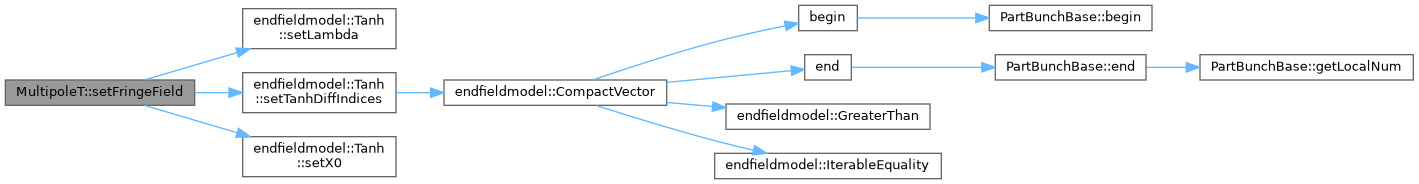

Here is the call graph for this function:

◆ setMaxOrder()

void MultipoleT::setMaxOrder	(	size_t	orderZ,
		size_t	orderX
	)

Set the number of terms used in calculation of field components

Parameters

orderZ	-> Number of terms in expansion in z
orderX	-> Number of terms in expansion in x

Definition at line 275 of file MultipoleT.cpp.

References implementation_, maxFOrder_m, and maxXOrder_m.

◆ setRotation()

void MultipoleT::setRotation ( double rot )

Set the angle of rotation of the magnet around its axis
To make skew components

Parameters

rot	-> Angle of rotation

Definition at line 281 of file MultipoleT.cpp.

References rotation_m.

◆ setScalingModel()

void MultipoleT::setScalingModel ( const std::shared_ptr< AbstractTimeDependence > & td )

inline

Definition at line 261 of file MultipoleT.h.

References scalingTD_m.

◆ setScalingName()

void MultipoleT::setScalingName ( const std::string & name )

Definition at line 303 of file MultipoleT.cpp.

References name, and scalingName_m.

◆ setTransProfile()

void MultipoleT::setTransProfile ( const std::vector< double > & profile )

Set the the transverse profile

Parameters

profile -> Multipole field profile

Definition at line 267 of file MultipoleT.cpp.

References transMaxOrder_m, and transProfile_m.

◆ toMagnetCoords()

Vector_t MultipoleT::toMagnetCoords ( const Vector_t & R )

Rotate coordinates around the central axis of the magnet

Go to local Frenet-Serret coordinates

Definition at line 107 of file MultipoleT.cpp.

References implementation_, and rotateFrame().

Referenced by apply().

Here is the call graph for this function:

Member Data Documentation

◆ bendAngle_m

double MultipoleT::bendAngle_m {0.0}

protected

Definition at line 289 of file MultipoleT.h.

Referenced by bends(), chooseImplementation(), getBendAngle(), and setBendAngle().

◆ boundingBoxLength_m

double MultipoleT::boundingBoxLength_m {0.0}

protected

Definition at line 291 of file MultipoleT.h.

Referenced by getBoundingBoxLength(), insideBoundingBox(), and setBoundingBoxLength().

◆ dummy

BMultipoleField MultipoleT::dummy

protected

Not implemented

Definition at line 297 of file MultipoleT.h.

Referenced by getField(), and getField().

◆ entranceAngle_m

double MultipoleT::entranceAngle_m {0.0}

protected

Definition at line 287 of file MultipoleT.h.

Referenced by getEntranceAngle(), rotateFrame(), and setEntranceAngle().

◆ entryOffset_m

double MultipoleT::entryOffset_m {0.0}

protected

Definition at line 292 of file MultipoleT.h.

Referenced by getEntryOffset(), and setEntryOffset().

◆ fringeField_l

endfieldmodel::Tanh MultipoleT::fringeField_l {endfieldmodel::Tanh()}

protected

Definition at line 276 of file MultipoleT.h.

Referenced by getFringeDeriv(), getFringeField(), and setFringeField().

◆ fringeField_r

endfieldmodel::Tanh MultipoleT::fringeField_r {endfieldmodel::Tanh()}

protected

Definition at line 277 of file MultipoleT.h.

Referenced by getFringeDeriv(), getFringeField(), and setFringeField().

◆ horizontalApert_m

double MultipoleT::horizontalApert_m {0.5}

protected

Definition at line 295 of file MultipoleT.h.

Referenced by getAperture(), insideAperture(), and setAperture().

◆ implementation_

std::unique_ptr<MultipoleTBase> MultipoleT::implementation_ {}

protected

Definition at line 302 of file MultipoleT.h.

Referenced by chooseImplementation(), getField(), getFnDerivS(), getFnDerivX(), getGeometry(), getGeometry(), initialise(), localCartesianRotation(), localCartesianToOpalCartesian(), setElementLength(), setFringeField(), setMaxOrder(), and toMagnetCoords().

◆ length_m

double MultipoleT::length_m {1.0}

protected

Magnet parameters

Definition at line 286 of file MultipoleT.h.

Referenced by getLength(), and setElementLength().

◆ maxFOrder_m

std::size_t MultipoleT::maxFOrder_m {3}

protected

Number of terms in z expansion used in calculating field components

Definition at line 279 of file MultipoleT.h.

Referenced by getMaxFOrder(), setFringeField(), and setMaxOrder().

◆ maxXOrder_m

std::size_t MultipoleT::maxXOrder_m {20}

protected

Highest order of polynomial expansions in x

Definition at line 281 of file MultipoleT.h.

Referenced by getMaxXOrder(), and setMaxOrder().

◆ rotation_m

double MultipoleT::rotation_m {0.0}

protected

Definition at line 288 of file MultipoleT.h.

Referenced by getRotation(), rotateFrame(), and setRotation().

◆ scalingName_m

std::string MultipoleT::scalingName_m

protected

Definition at line 299 of file MultipoleT.h.

Referenced by getScalingName(), initialiseTimeDepencencies(), and setScalingName().

◆ scalingTD_m

std::shared_ptr<AbstractTimeDependence> MultipoleT::scalingTD_m

mutableprotected

Definition at line 300 of file MultipoleT.h.

Referenced by apply(), initialiseTimeDepencencies(), and setScalingModel().

◆ transMaxOrder_m

size_t MultipoleT::transMaxOrder_m {1}

protected

Definition at line 284 of file MultipoleT.h.

Referenced by getTransDeriv(), getTransMaxOrder(), and setTransProfile().

◆ transProfile_m

std::vector<double> MultipoleT::transProfile_m {0.0}

protected

List of transverse profile coefficients

Definition at line 283 of file MultipoleT.h.

Referenced by bends(), getTransProfile(), and setTransProfile().

◆ variableRadius_m

bool MultipoleT::variableRadius_m {false}

protected

Definition at line 290 of file MultipoleT.h.

Referenced by chooseImplementation(), getVariableRadius(), and setBendAngle().

◆ verticalApert_m

double MultipoleT::verticalApert_m {0.5}

protected

Assume rectangular aperture with these dimensions

Definition at line 294 of file MultipoleT.h.

Referenced by getAperture(), insideAperture(), and setAperture().

The documentation for this class was generated from the following files:

src/Classic/AbsBeamline/MultipoleT.h
src/Classic/AbsBeamline/MultipoleT.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MultipoleT() [1/2]

◆ MultipoleT() [2/2]

◆ ~MultipoleT()

Member Function Documentation

◆ accept()

◆ apply() [1/2]

◆ apply() [2/2]

◆ bends()

◆ chooseImplementation()

◆ clone()

◆ finalise()

◆ getAperture()

◆ getBendAngle()

◆ getBoundingBoxLength()

◆ getDimensions()

◆ getEntranceAngle()

◆ getEntryOffset()

◆ getField() [1/3]

◆ getField() [2/3]

◆ getField() [3/3]

◆ getFnDerivS()

◆ getFnDerivX()

◆ getFringeDeriv()

◆ getFringeField()

◆ getGeometry() [1/2]

◆ getGeometry() [2/2]

◆ getLength()

◆ getMaxFOrder()

◆ getMaxXOrder()

◆ getRotation()

◆ getScalingName()

◆ getTransDeriv()

◆ getTransMaxOrder()

◆ getTransProfile()

◆ getVariableRadius()

◆ initialise()

◆ initialiseTimeDepencencies()

◆ insideAperture()

◆ insideBoundingBox()

◆ localCartesianRotation()

◆ localCartesianToOpalCartesian()

◆ rotateFrame()

◆ setAperture()

◆ setBendAngle()

◆ setBoundingBoxLength()

◆ setElementLength()

◆ setEntranceAngle()

◆ setEntryOffset()

◆ setFringeField()

◆ setMaxOrder()

◆ setRotation()

◆ setScalingModel()

◆ setScalingName()

◆ setTransProfile()

◆ toMagnetCoords()

Member Data Documentation

◆ bendAngle_m

◆ boundingBoxLength_m

◆ dummy

◆ entranceAngle_m

◆ entryOffset_m

◆ fringeField_l

◆ fringeField_r

◆ horizontalApert_m

◆ implementation_

◆ length_m

◆ maxFOrder_m

◆ maxXOrder_m

◆ rotation_m

◆ scalingName_m

◆ scalingTD_m

◆ transMaxOrder_m

◆ transProfile_m

◆ variableRadius_m
