Voxel Class Reference

Collaboration diagram for Voxel:

Public Member Functions
	Voxel ()
	Voxel (const Vector_t &min, const Vector_t &max)
void	scale (const Vector_t &scale)
bool	intersect (const Ray &r, double &tmin, double &tmax) const
bool	intersect (const Ray &r) const
int	intersect (const Triangle &t) const
Vector_t	extent () const
bool	isInside (const Vector_t &P) const

Public Attributes
Vector_t	pts [2]

Detailed Description

Definition at line 829 of file BoundaryGeometry.cpp.

Constructor & Destructor Documentation

Voxel() [1/2]

Voxel::Voxel ( )

inline

Definition at line 831 of file BoundaryGeometry.cpp.

Voxel() [2/2]

Voxel::Voxel ( const Vector_t &  min, const Vector_t &  max  )

inline

Definition at line 832 of file BoundaryGeometry.cpp.

References max(), min(), and pts.

Here is the call graph for this function:

Member Function Documentation

extent()

Vector_t Voxel::extent ( ) const

inline

Definition at line 895 of file BoundaryGeometry.cpp.

References pts.

Referenced by intersect().

intersect() [1/3]

bool Voxel::intersect ( const Ray &  r ) const

inline

Definition at line 876 of file BoundaryGeometry.cpp.

References intersect().

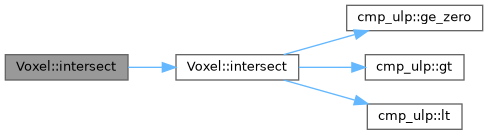

Here is the call graph for this function:

intersect() [2/3]

bool Voxel::intersect ( const Ray &  r, double &  tmin, double &  tmax  ) const

inline

Definition at line 848 of file BoundaryGeometry.cpp.

References cmp_ulp::ge_zero(), cmp_ulp::gt(), Ray::inv_direction, cmp_ulp::lt(), Ray::origin, pts, and Ray::sign.

Referenced by intersect(), and BoundaryGeometry::intersectTinyLineSegmentBoundary().

Here is the call graph for this function:

intersect() [3/3]

int Voxel::intersect ( const Triangle &  t ) const

inline

Definition at line 884 of file BoundaryGeometry.cpp.

References extent(), pts, scale(), and Triangle::scale().

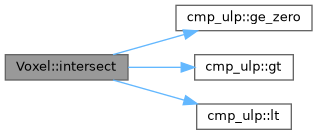

Here is the call graph for this function:

isInside()

bool Voxel::isInside ( const Vector_t &  P ) const

inline

Definition at line 899 of file BoundaryGeometry.cpp.

References cmp_ulp::ge(), cmp_ulp::le(), and pts.

Here is the call graph for this function:

scale()

void Voxel::scale ( const Vector_t &  scale )

inline

Definition at line 836 of file BoundaryGeometry.cpp.

References pts, and scale().

Referenced by intersect(), and scale().

Here is the call graph for this function:

Member Data Documentation

pts

Vector_t Voxel::pts[2]

Definition at line 911 of file BoundaryGeometry.cpp.

Referenced by extent(), intersect(), intersect(), BoundaryGeometry::intersectTinyLineSegmentBoundary(), isInside(), scale(), and Voxel().

---

The documentation for this class was generated from the following file:

• src/Structure/BoundaryGeometry.cpp
