Set/reset all selection flags in a beam line built from FlaggedElmPtr. More...
#include <Flagger.h>
Inheritance diagram for Flagger:

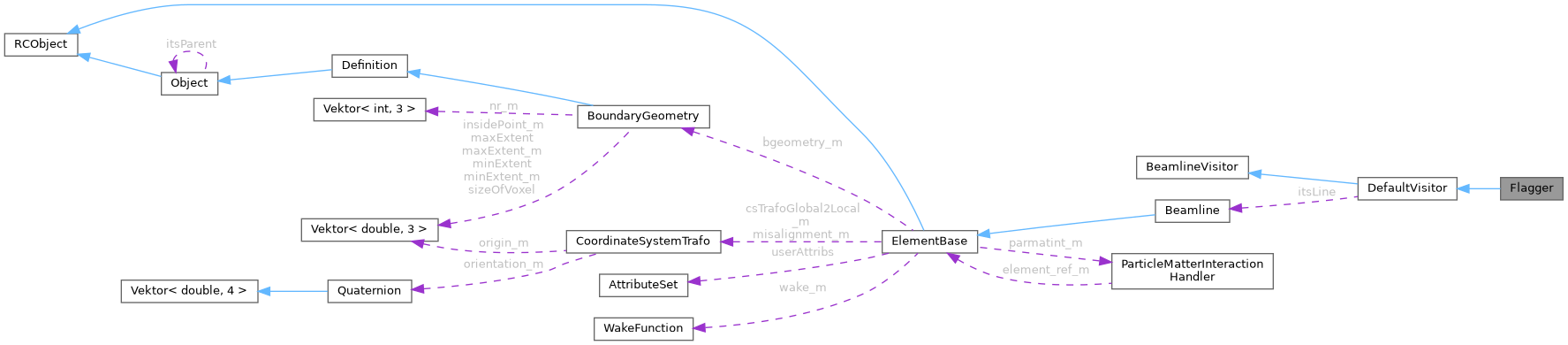

Collaboration diagram for Flagger:
Public Member Functions | |
| Flagger (const Beamline &bl, bool set) | |
| Constructor. | |
| virtual | ~Flagger () |
| virtual void | visitFlaggedElmPtr (const FlaggedElmPtr &) |
| Set selection flag in the given FlaggedElmPtr. | |
 Public Member Functions inherited from DefaultVisitor | |
| DefaultVisitor (const Beamline &beamline, bool backBeam, bool backTrack) | |
| Constructor. | |
| virtual | ~DefaultVisitor ()=0 |
| virtual void | execute () |
| Apply the algorithm to the top-level beamline. | |
| virtual void | visitBeamline (const Beamline &) |
| Apply the algorithm to a beam line. | |
| virtual void | visitCCollimator (const CCollimator &) |
| Apply the algorithm to a collimator. | |
| virtual void | visitComponent (const Component &) |
| Apply the algorithm to an arbitrary component. | |
| virtual void | visitCorrector (const Corrector &) |
| Apply the algorithm to a closed orbit corrector. | |
| virtual void | visitCyclotron (const Cyclotron &) |
| Apply the algorithm to an cyclotron. | |
| virtual void | visitDegrader (const Degrader &) |
| Apply the algorithm to a degrader. | |
| virtual void | visitDrift (const Drift &) |
| Apply the algorithm to a drift space. | |
| virtual void | visitFlexibleCollimator (const FlexibleCollimator &) |
| Apply the algorithm to a flexible collimator. | |
| virtual void | visitMarker (const Marker &) |
| Apply the algorithm to a marker. | |
| virtual void | visitMonitor (const Monitor &) |
| Apply the algorithm to a beam position monitor. | |
| virtual void | visitMultipole (const Multipole &) |
| Apply the algorithm to a multipole. | |
| virtual void | visitMultipoleT (const MultipoleT &) |
| Apply the algorithm to to an arbitrary multipole. | |
| virtual void | visitOffset (const Offset &) |
| Apply the algorithm to an offset (placement). | |
| virtual void | visitOutputPlane (const OutputPlane &) |
| Apply the algorithm to an output plane. | |
| virtual void | visitProbe (const Probe &prob) |
| Apply the algorithm to a probe. | |
| virtual void | visitRBend (const RBend &) |
| Apply the algorithm to a rectangular bend. | |
| virtual void | visitRBend3D (const RBend3D &) |
| Apply the algorithm to a rectangular bend. | |
| virtual void | visitRFCavity (const RFCavity &) |
| Apply the algorithm to a RF cavity. | |
| virtual void | visitRing (const Ring &) |
| Apply the algorithm to a ring. | |
| virtual void | visitSBend (const SBend &) |
| Apply the algorithm to a sector bend. | |
| virtual void | visitSBend3D (const SBend3D &) |
| Apply the algorithm to a sector bend with 3D field map. | |
| virtual void | visitScalingFFAMagnet (const ScalingFFAMagnet &) |
| Apply the algorithm to a scaling FFA magnet. | |
| virtual void | visitSeptum (const Septum &) |
| Apply the algorithm to a septum. | |
| virtual void | visitSolenoid (const Solenoid &) |
| Apply the algorithm to a solenoid. | |
| virtual void | visitSource (const Source &) |
| Apply the algorithm to a source. | |
| virtual void | visitStripper (const Stripper &) |
| Apply the algorithm to a particle stripper. | |
| virtual void | visitTravelingWave (const TravelingWave &) |
| Apply the algorithm to a traveling wave. | |
| virtual void | visitVacuum (const Vacuum &) |
| Apply the algorithm to a vacuum space. | |
| virtual void | visitVariableRFCavity (const VariableRFCavity &vcav) |
| Apply the algorithm to a a variable RF cavity. | |
| virtual void | visitVariableRFCavityFringeField (const VariableRFCavityFringeField &vcav) |
| Apply the algorithm to a a variable RF cavity with Fringe Field. | |
| virtual void | visitVerticalFFAMagnet (const VerticalFFAMagnet &) |
| Apply the algorithm to a vertical FFA magnet. | |
| Public Member Functions inherited from BeamlineVisitor | |
| BeamlineVisitor () | |
| virtual | ~BeamlineVisitor () |
Private Member Functions | |
| Flagger () | |
| Flagger (const Flagger &) | |
| void | operator= (const Flagger &) |
Private Attributes | |
| bool | flag |
Additional Inherited Members | |
| Protected Attributes inherited from DefaultVisitor | |
| const Beamline & | itsLine |
| bool | back_beam |
| bool | back_track |
| bool | back_path |
| double | flip_B |
| double | flip_s |
Detailed Description
Set/reset all selection flags in a beam line built from FlaggedElmPtr.
Constructor & Destructor Documentation
◆ Flagger() [1/3]
| Flagger::Flagger | ( | const Beamline & | bl, |
| bool | set | ||
| ) |
Constructor.
Definition at line 26 of file Flagger.cpp.
◆ ~Flagger()
|
virtual |
Definition at line 31 of file Flagger.cpp.
◆ Flagger() [2/3]
|
private |
◆ Flagger() [3/3]
|
private |
Member Function Documentation
◆ operator=()
|
private |
◆ visitFlaggedElmPtr()
|
virtual |
Set selection flag in the given FlaggedElmPtr.
Reimplemented from DefaultVisitor.
Definition at line 35 of file Flagger.cpp.
References flag, FlaggedElmPtr::setSelectionFlag(), and DefaultVisitor::visitFlaggedElmPtr().

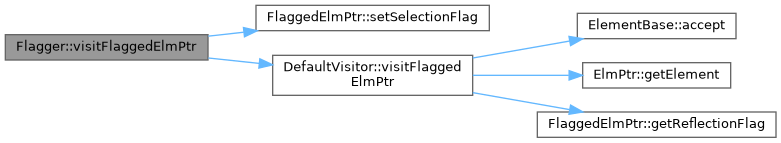

Here is the call graph for this function:
Member Data Documentation
◆ flag
|
private |
Definition at line 52 of file Flagger.h.
Referenced by visitFlaggedElmPtr().
The documentation for this class was generated from the following files:
- src/Classic/Algorithms/Flagger.h
- src/Classic/Algorithms/Flagger.cpp
